| Height (excluding foot) | 3.46 inches (88 mm) |
| Width | 8.27 inches (210 mm) |
| Depth | 8.94 inches (227 mm) |
| Weight | 5.96 lb (2.7 kg) |

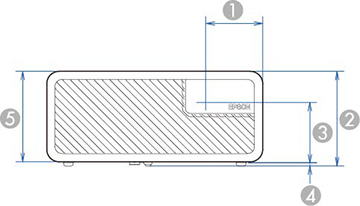

For mounting
| 1 | Center of lens: 2.17 inches (55 mm) |
| 2 | 3.62 inches (92 mm) |
| 3 | 2.31 inches (58.8 mm) |
| 4 | 0.12 inch (3 mm) |
| 5 | 3.46 inches (88 mm) |
| 1 | 4.39 inches (111.4 mm) |
| 2 | 2.22 inches (56.4 mm) |
| 3 | Center of lens |
| 4 | 3.29 inches (83.6 mm) |
| 5 | 4.33 inches (110 mm) |
| 6 | Rear foot |
| 7 | 4.69 inches (119 mm) |
| 8 | 3.86 inches (98 mm) |
| 9 | 2.52 inches (64 mm) |
| 10 | 2.76 inches (70 mm) |
| 11 | M4×9mm screws (3) |
| 12 | 0.95 inch (24.2 mm) |
| 13 | Front adjustable foot |
