You

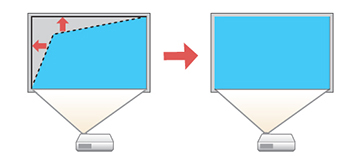

can use the projector's Quick Corner setting to correct the shape
and size of an image that is unevenly rectangular on all sides.
Note: If you
change the Screen Type setting or
adjust the image position, your image adjustments are
reset.
Turn on the projector and display an
image.
Press the Menu button.
Select the Installation menu and
press Enter.
Select the Geometry Correction setting and press
Enter.
Select the Quick
Corner setting and press Enter.
Note: You may
see a confirmation screen. Select Yes and press Enter again.
You see the Quick Corner adjustment screen:
Use the arrow buttons on the projector or remote control to select the corner of the
image you want to adjust. Then press Enter.
Note: To
reset your adjustments, press and hold the Esc button for at least 2 seconds to display
a reset screen. Then select Yes.
Press the arrow buttons to adjust the image
shape as necessary. Press Enter to return to the area selection
screen.
Note: You can
also use the numeric buttons on the remote control to adjust the
image shape. If one of the directional arrows on the screen turns
gray, you cannot adjust the shape any further in that
direction.
When you are finished, press Esc.
The Geometry Correction setting is now set to
Quick Corner in the projector's
Installation menu. If you press the keystone
adjustment buttons on the control panel, the area selection screen
appears.
Note: To save
the current image shape, select Save
Memory. You can save up to three image shapes in the
projector's memory.
