Drawing on a Projected Image (Built-in Annotation Mode)

You can project from a computer, tablet, video device, or other source and annotate over your projected content using the interactive pens or your finger. You can use one pen, both pens at the same time, or a combination of pens and finger touch.

Note: A Touch Unit is optional for the BrightLink 1480Fi and must be installed for finger touch operation.

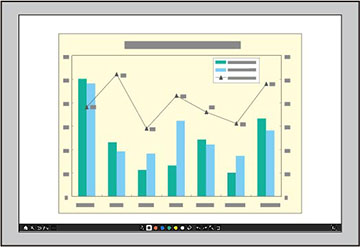

Project an image from a connected device. You see the toolbar on the bottom of the projected image.
To move the toolbar to the right, left, top, or bottom of the screen, use the pen or your finger to drag it to the desired location.
To switch to one of the other interactive modes, do one of the following:
- To split the screen with whiteboard mode, select the Whiteboard icon on the toolbar.
- To switch to PC Interactive mode, switch to the input source for the connected computer or select the PC Interactivity icon on the toolbar and make sure it is set to On if the computer is already connected.
To show or hide the toolbar, select the icon.
Note: You can also show or hide the projector control toolbar by setting the Interactive > Display Toolbars setting to Always Show or Hide for Set Time.
