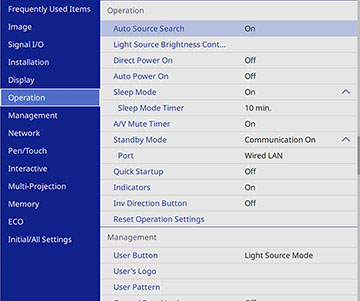

| Auto Source Search
|
On
Off
|
Enables the projector to automatically select an input
source |
| Light Source Brightness
Control
|
Maintain Brightness
Maintain Brightness
Level
Estimated Remains
Light Source Mode
Brightness Level
|
Controls the constant brightness of the projector's
light source
Maintain Brightness:
maintains a constant brightness
Maintain Brightness
Level: selects the brightness level to maintain when the
Maintain Brightness setting is
enabled
Estimated Remains:
if the Maintain Brightness
setting is enabled, displays the remaining number of hours the
projector can maintain constant brightness
Light Source Mode:
selects the brightness mode of the projector when the Maintain Brightness setting is
disabled
- Normal: maximum
brightness
- Quiet: 70%
brightness with reduced fan noise
- Extended: 70%
brightness and extends the life expectancy of the light source
- Custom: select a
custom brightness level and enable use of the next setting
Brightness Level:
select the Custom brightness
level you want |
| Direct Power On
|
On
Off
|
Controls whether the projector automatically turns on
when you plug it in |
| Auto Power On
|
HDMI1
Computer1
USB Display
Off
|
Selects whether to automatically turn on the projector
when you connect an input signal to a specific input source
If you select HDMI1,
set the method for automatically turning on the projector in the
Power On Trigger setting.
Note: USB
Display is only displayed when USB Display is enabled in the Signal I/O
menu. |
| Power On Trigger
|
Plug-in Detection
Signal Detection
|
Sets the way the projector turns on when Auto Power On
is set to HDMI1.
Plug-in Detection:
automatically turns the projector on when it detects a connected
device is turned on
Signal Detection:
automatically turns the projector on when an HDMI signal is
detected
Note: When
Signal Detection is selected, the
power used in standby mode increases. |
| Sleep Mode
|
On
Off
|
Automatically turns off the projector after an interval
of inactivity |
| Sleep Mode Timer
|
1 to 30 minutes |
Sets the time before the projector automatically turns
off (Sleep Mode must be turned
on) |
| A/V Mute Timer
|
On
Off
|
Automatically turns off the projector after 30 minutes
of inactivity |
| Standby Mode
|
Communication On
Communication Off
|
Enable this setting to allow the following operations
to occur when the projector is in standby mode:
- Monitor and control the projector over a
network
- Output audio and video to an external device (A/V
Output must be set to Always
On)
This setting is displayed only if A/V Output is set to While Projecting, Power On Trigger is set to Plug-in Detection, or when Auto Power On is disabled. |
| Port
|
Wired LAN
Wireless LAN
|
Selects the port to use while the Standby Mode setting is set to Communication On |
| Quick Startup
|
20min.
60min.
90min.
Off
|
Sets the time period for which you want to be able to
restart the projector within five seconds of turning it off (Quick
Start mode).
Make sure to first set A/V Output to While Projecting, Auto Power On to
Off, and Power On Trigger to
Plug-in Detection. It may take
longer than five seconds when projecting from the projector's
USB or HDMI Out ports, when using the Screen
Mirroring features, if whiteboard sharing was ended in the previous
session, or if you want to restore the whiteboard contents from the
previous session. |
| Closed Caption
|
CC1
CC2
Off
|
Enables and selects the type of closed captions to
display |
| Indicators
|
On
Off
|
Enables or disables the status indicator lights on the
projector |
| Inv Direction Button
|
On
Off
|
Enable this setting if you want to invert the direction
of the arrow buttons on the control panel to match the projector's
installation position |
| Reset Operation
Settings
|
— |
Reset all settings on the Operation menu to their
default values |
