Loading Paper in the Auto Sheet Feeder

You can load up to 50 sheets of plain paper up to 0.1 inch (0.27 mm) thick in the auto sheet feeder in the following sizes: A3 (11.7 × 16.5 inches [297 × 420 mm]), A4 (8.3 × 11.7 inches [210 × 297 mm]), Letter (8.5 × 11 inches [216 × 279 mm]), or Legal (8.5 × 14 inches [216 × 356 mm]).
Note: Roll paper can remain loaded when using the auto sheet feeder. Switch between paper sources in the printer driver.
  1. Attach the output tray by inserting its hooks into the holes in the front of the printer.

  2. Make sure Load paper or Ready is displayed on the home screen.
  3. Open the cut sheet cover.

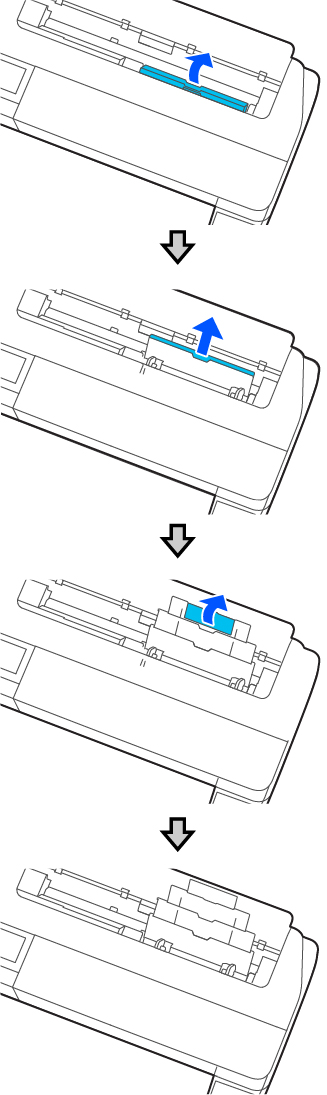

  4. Tilt back the auto sheet feeder, then pull up and tilt back the paper support extensions all the way.

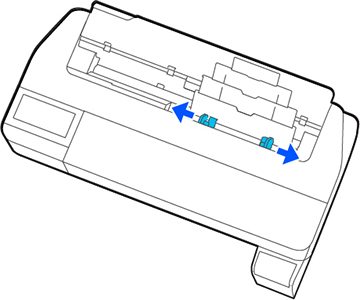

  5. Slide the edge guides outward.

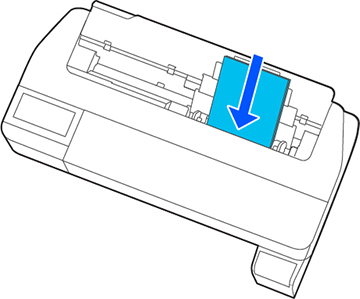

  6. Load paper, printable side up, in portrait orientation into the auto sheet feeder.

  7. Adjust the edge guides to fit the paper width.

  8. Select the paper type and size you loaded on the LCD screen.
