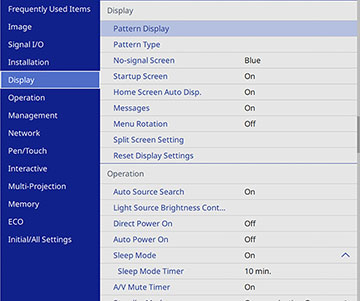

Settings on the Display menu let you customize various projector display features. The available settings depend on the currently selected input source and other settings.
| Setting | Options | Description |
|---|---|---|
| Pattern Display | — | Displays the selected pattern type to assist in adjusting the image |
| Pattern Type | Pattern 1
Pattern 2 Pattern 3 Pattern 4 User Pattern |
Selects the type of grid pattern, line pattern, or custom pattern to display |
| No-signal Screen | Black
Blue Logo Gradation |
Select the screen color or logo to display when no input signal is detected |
| Startup Screen | On
Off |
Controls whether a logo is displayed when the projector starts up |
| Home Screen Auto Disp. | On
Off |
Controls whether the Home screen is displayed
automatically when no input signal is detected when the projector
turns on
This setting is only displayed when Connection Guide Display is set to Off in the projector's Network menu. |
| Sort Source Thumbnails | On
Off |
Selects whether or not to sort sources on the Home screen by signal detection |
| Messages | On
Off |
Controls whether projector status and error messages are displayed on the projected image |
| Menu Rotation | Right 90 Degree
Left 90 Degree Off |
Rotates the menu display 90° |
| Menu Color | Black
White |
Sets the color theme of the Home screen and projector menus |
| Split Screen Setting | Display Audio Output
Source
Align |
Adjusts the Split Screen feature
Display Audio Output Source: controls whether an icon is displayed with the source providing audio output during Split Screen projection Align: if splitting the screen between two images, determines whether the images are aligned at the top or in the middle of the screen |
| Reset Display Settings | — | Resets all settings on the Display menu to their default values |
Note: You
must disable User's Logo password protection to adjust the
No-signal Screen and Startup Screen settings.
