Adjusting the Image Height
If you are projecting from a table or other flat surface and the image is too high or low, you can adjust the image height using the projector's adjustable foot.
Turn on the projector and display an image.

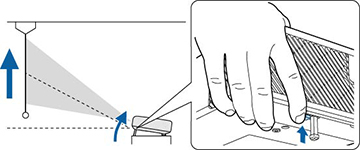

Press and hold the foot release lever to extend or retract the front adjustable foot.
You can adjust the position up to 11°.
Release the lever to lock the foot when the image is at the position you want.
If the projected image is unevenly rectangular, you need to adjust the image shape.
Using Basic Projector Features
