Replacing the Air Filter

You need to replace the air filter in the following situations:

You can replace the air filter while the projector is mounted to the ceiling or placed upside-down on a table.

  1. Turn off the projector and unplug the power cord.
  2. Place the projector upside-down on a table.

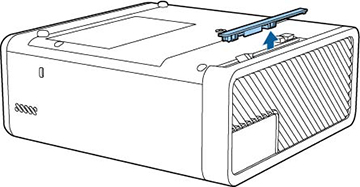

  3. Remove the air filter cover.

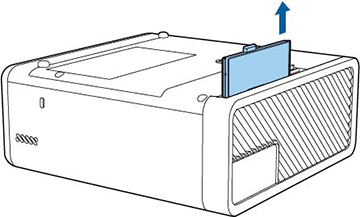

  4. Pull the air filter out of the projector.


    Note: Air filters contain ABS resin and polyurethane foam. Dispose of used air filters according to local regulations.
  5. Place the new air filter in the projector as shown and push gently until it clicks into place.


  6. Replace the air filter cover.
