Connecting to a Streaming Media Player

You can connect a streaming media player to the projector's HDMI port. Connecting the USB power cable provides power to the streaming media player.
  1. Remove the rear cover from the projector.


  2. Release the USB power cable from the cable hook and cable clamp as shown.

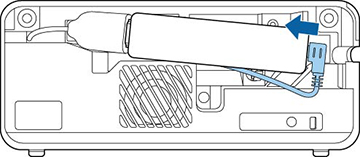

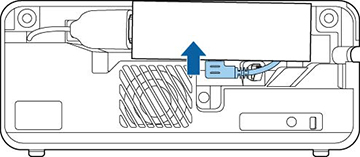

  3. Connect the streaming media player to the HDMI extension cable.


  4. Connect the USB power cable to the streaming media player's USB power port.

    USB power port on the side



    USB power port on the bottom



  5. Pass the USB power cable through the cable hook and cable clamp, then close the cable clamp to secure the cable.

    USB power port on the side



    USB power port on the bottom

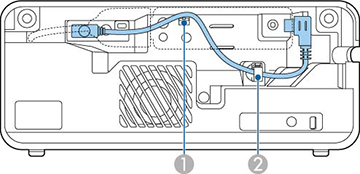

    1 Cable hook
    2 Cable clamp

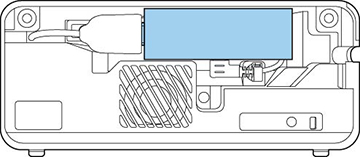

  6. Secure the streaming media player as shown.

    USB power port on the side



    USB power port on the bottom



  7. Replace the rear cover and push it into place.
