Installing the Optional Ethernet Board

You can install an Ethernet board in your product to provide additional Ethernet connection ports.
  1. Turn off the product, and unplug the power cord and any connected cables.
    Warning: To avoid electric shock, make sure you unplug the power cord. To remove static electricity from your body, make sure you ground yourself before installing the Ethernet board.

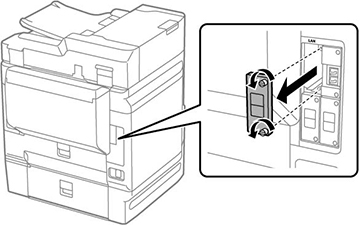

  2. Loosen the two screws and remove the LAN cover from the product.


    Note: Store the cover in a safe place.

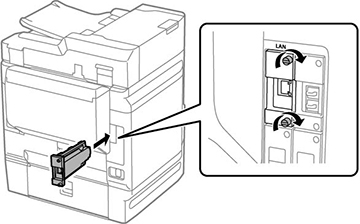

  3. Insert the Ethernet board firmly into the interface slot and tighten the screws.


    Caution:
    Do not remove the cover or touch the back of the Ethernet board.
  4. Connect the power cord and other connection cables, then plug in the product.
  5. Turn on the product.
  6. Press the  Job/Status button, select Options, and make sure the Ethernet board appears.
  7. Press the  home button to return to the home screen.
  8. Select Settings > General Settings > System Administration > Firmware Update > Update to update the firmware.
