Cleaning the Automatic Document Feeder

You can clean the ADF if you see lines or streaks in your copies or scanned images.
Caution:
Do not use a hard brush, alcohol, or paint thinner to clean the product or you may damage it. Do not use oil or other lubricants inside the product or let water get inside it.

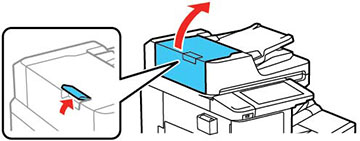

  1. Lift the lever and open the ADF cover.

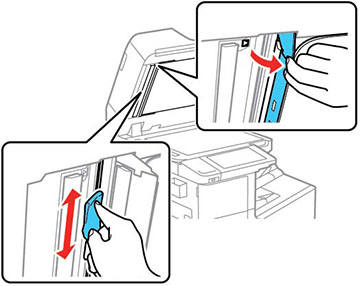

  2. Use a soft, lint-free cloth (microfiber is recommended) moistened with a little water to clean the rollers and the interior of the ADF.
    Caution:
    Do not use a dry cloth; you may damage the ADF rollers.
    Note: Wait until the rollers are dry before using the ADF.

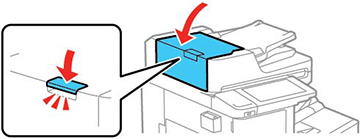

  3. Close the ADF cover. The lever clicks when the cover is fully closed.


  4. Open the document cover.


  5. Remove the cleaning cloth from its holder.

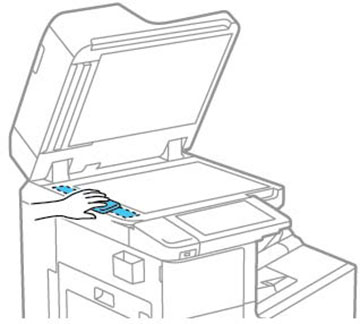

  6. Clean the small strip of glass.


  7. Lift the edge of the document cover as shown and use the cleaning cloth to clean the areas shown.


  8. Return the cleaning cloth to its holder when you are finished.
  9. Close the document cover.
