You can add
scan jobs that contain specific scan settings and use the jobs when
you scan from your product control panel or the Job Scan option in
Document Capture Pro. You can save up to 30 scan jobs.
Note:
Settings may vary depending on the software version you are using.
Click the Help icon in Document
Capture Pro at any time for more information.
- Do one of the following to
start Document Capture Pro:
- Windows 11:
Click
, then search for Document Capture Pro and select it. - Windows 10:
Click
and select Epson Software > Document Capture Pro. - Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
- Windows (other
versions): Click
or Start, and select All Programs or Programs. Select Epson Software > Document Capture Pro.
- Windows 11:
Click

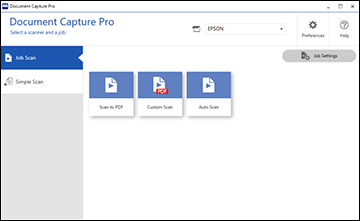

- Select the Job Scan tab. You see a window like this:
- Click the Job Settings button. You see a window like this:
- To add a scan job, click the New Job icon.
- Enter a name for the new
job, and select any settings as necessary from the following
options:
- Scan: select the size, color, or resolution
- Save: select the file name, file type, or destination folder
- Index: enable the index setting and choose output options for an index file
- Send: select the destination for the scanned file, or choose to email or print the file
- Confirm/Test: select the job button icon and color, choose display settings, and run a test scan if necessary
- Click Save when you are finished. The new job appears in the Job Scan window.

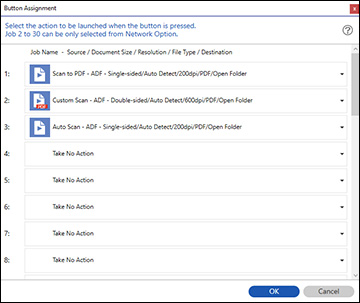

- To assign a scan job to the product control panel, click the Button Assignment icon. You see a screen like this:
- Select the jobs that you want to assign to the product
control panel using any of the pull-down menus.
Note: The number of pull-down menus available may vary, depending on your product and any connected options.
- Click OK, then click Back. You can now use the added scan jobs when you scan from the product control panel.
