Placing Originals on the Scanner Glass

You can place originals up to this size on the scanner glass: Letter (8.5 × 11 inches [216 × 279 mm]) or A4 (8.3 × 11.7 inches [210 × 297 mm]).
Note: To view animated instructions on how to place originals on the scanner glass, press the  help button and select How To > Place Originals > Scanner Glass.
Note: When originals are placed in the ADF and on the scanner glass, priority is given to the originals in the ADF.
  1. Open the document cover.

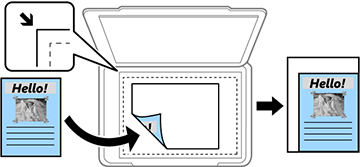

  2. Place your original facedown on the scanner glass with the top facing into the corner. Slide the original to the edges of the indicated corner.


    Note: The edges of your original may be cropped by 0.06 inch (1.5 mm) from the edge of the scanner glass. Manually position your original away from the edges to prevent cropping.
  3. Close the document cover gently to keep your original in place.
    Caution:
    Do not push down on the document cover or scanner glass or you may damage the product.
Remove your originals after scanning. If you leave the originals on the scanner glass for a long time, they may stick to the glass surface.
