You can
load an original that meets the document specifications in the
input slot.
Caution:
Do not load photos, or valuable original
documents or artwork, directly into the scanner. This may wrinkle
or damage the original.
Note: Photos
scanned using a document scanner may not have the same color depth
as the original. Use a flatbed photo scanner for best
results.
Note: The
illustrations show the RR-60 model, but the steps are
the same for the RR-70W.

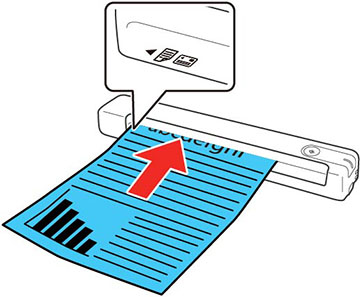

- For standard size originals, slide your original into the input slot against the left side as shown until it meets resistance. Make sure the printed side is faceup and top edge first.
- For longer originals, slide your
original into the input slot against the left side as shown until
it meets resistance. Make sure the printed side is faceup and top
edge first. Set the paper size in the scanning program and support
the original as it enters into and ejects from the scanner.
Note: Epson Smart Panel does not support scanning long papers.

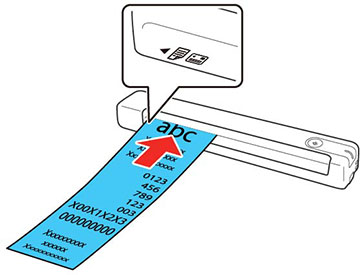

- For receipts, support the original by
hand and load it into the input slot against the left side as shown
until it meets resistance. Make sure the printed side is faceup and
top edge first.
Note: Epson Smart Panel does not support scanning long receipts.

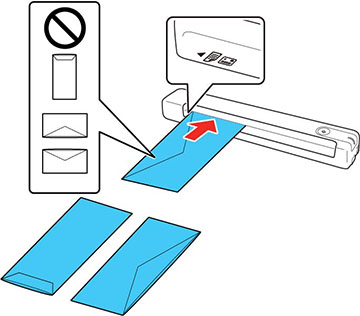

- For envelopes, slide the original into
the input slot against the left side as shown until it meets
resistance. Make sure the side you want to scan is faceup and the
flap is facing either the right or left side. For envelopes with
the flap on the shorter side, load the envelope with the flap side
last.
Caution:Do not load envelopes with adhesives on them.

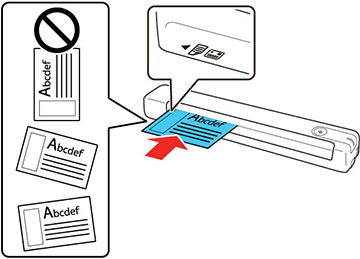

- For plastic cards, load the card
horizontally into the input slot against the left side as shown
until it meets resistance. Make sure the printed side is
faceup.
Caution:Do not load plastic cards vertically or at an angle.

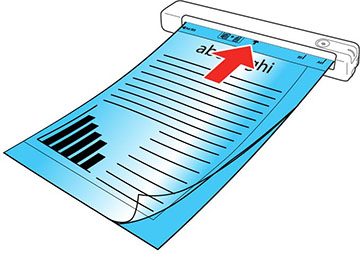

- For irregularly shaped originals, use
an optional carrier sheet (part number B12B819451). Make sure the
illustration on the front edge of the carrier sheet is faceup with
the original faceup against the left side. Slide the carrier sheet
top edge first into the input slot against the left side as shown
until it meets resistance.
Note: Only use the carrier sheet designed for your scanner. If the carrier sheet is scratched or has been scanned more than 3,000 times, stop using it and obtain a new one. Epson Smart Panel does not support scanning with a carrier sheet.
