Input Signal Settings - Signal Menu

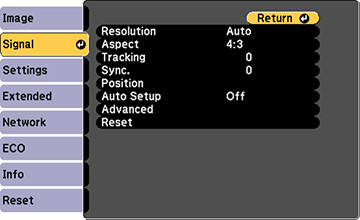

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.



Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Auto button on the remote control (Home Cinema 1080).

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
Resolution Auto

Wide

Normal

Sets the input signal resolution if not detected automatically using the Auto option
Aspect See the list of available aspect ratios Sets the aspect ratio (width-to-height ratio) for the selected input source
Tracking

(Home Cinema 1080)

Varying levels available Adjusts signal to eliminate vertical stripes in computer images
Sync.

(Home Cinema 1080)

Varying levels available Adjusts signal to eliminate fuzziness or flickering in computer images
Position

(Home Cinema 1080)

Up, down, left, right Adjusts the image location on the screen
Auto Setup

(Home Cinema 1080)

On

Off

Automatically optimizes computer image quality (when On)
Overscan Auto

Off

4%

8%

Changes the projected image ratio to make the edges visible by a selectable percentage or automatically when using an HDMI input source
Advanced Video Range Sets the video range to match the setting of the device connected to the HDMI input port.
Video Signal Specifies the signal type from the input sources connected to the video ports. Select Auto to detect signals automatically.
Reset Resets all settings in the Signal menu to their defaults
