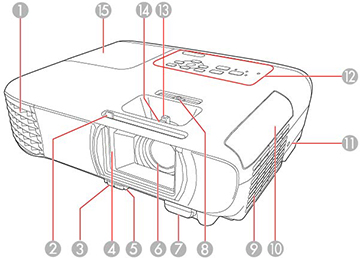

| 1 | Exhaust vent |
| 2 | A/V Mute slide lever |
| 3 | Foot release lever |
| 4 | Lens cover |
| 5 | Front adjustable foot |
| 6 | Lens |
| 7 | Remote control receiver |
| 8 | Horizontal keystone slider |
| 9 | Air filter/intake vent |
| 10 | Air filter cover |
| 11 | Kensington security lock slot |
| 12 | Control panel |
| 13 | Zoom ring (Home Cinema 1080) |
| 14 | Focus ring |
| 15 | Lamp cover |
