The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here.

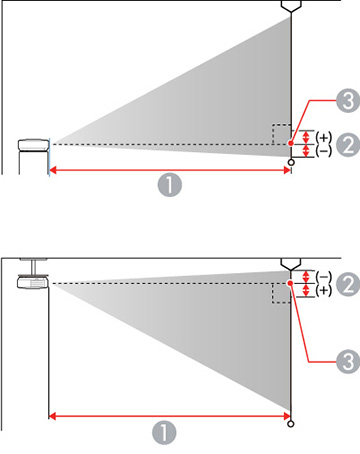

| 1 | Projection distance |
| 2 | Distance from the center of the lens to the base of the image |
| 3 | Center of lens |
PowerLite E10+/VS260
| 4:3 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 30 inches | 34 to 46 inches
(87 to 118 cm) |
–2 inches (–5 cm) |
| 50 inches | 57 to 78 inches
(146 to 198 cm) |
–3.2 inches (–8 cm) |
| 60 inches | 69 to 94 inches
(176 to 238 cm) |
–3.9 inches (–10 cm) |
| 70 inches | 81 to 109 inches
(205 to 278 cm) |
–4.7 inches (–12 cm) |
| 80 inches | 93 to 125 inches
(235 to 318 cm) |
–5.5 inches (–14 cm) |
| 100 inches | 116 to 157 inches
(294 to 398 cm) |
–6.7 inches (–17 cm) |
| 150 inches | 174 to 235 inches
(442 to 598 cm) |
–9.8 inches (–25 cm) |
| 200 inches | 232 to 314 inches
(590 to 797 cm) |
–13.4 inches (–34 cm) |
| 300 inches | 349 inches
(886 cm) |
–20.1 inches (–51 cm) |
| 350 inches | 407 inches
(1034 cm) |
–23.2 inches (–59 cm) |
PowerLite X06+/PowerLite X51+
| 4:3 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 30 inches | 35 to 42 inches
(89 to 107 cm) |
–2 inches (–5 cm) |
| 40 inches | 47 to 56 inches
(119 to 143 cm) |
–2.8 inches (–7 cm) |
| 50 inches | 59 to 71 inches
(150 to 180 cm) |
–3.2 inches (–8 cm) |
| 60 inches | 71 to 85 inches
(180 to 217 cm) |
–3.9 inches (–10 cm) |
| 80 inches | 95 to 114 inches
(241 to 290 cm) |
–5.5 inches (–14 cm) |
| 100 inches | 119 to 143 inches
(302 to 363 cm) |
–6.7 inches (–17 cm) |
| 150 inches | 179 to 215 inches
(454 to 546 cm) |
–9.8 inches (–25 cm) |
| 200 inches | 239 to 287 inches
(607 to 729 cm) |
–13.4 inches (–34 cm) |
| 250 inches | 299 to 359 inches
(759 to 912 cm) |
–16.5 inches (–42 cm) |
| 300 inches | 359 to 431 inches
(912 to 1095 cm) |
–20.1 inches (–51 cm) |
PowerLite W06+/PowerLite W52+
| 16:10 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 33 inches | 36 to 43 inches
(91 to 110 cm) |
–1.6 inches (–4 cm) |
| 35 inches | 38 to 46 inches
(97 to 117 cm) |
–1.6 inches (–4 cm) |
| 40 inches | 44 to 53 inches
(111 to 134 cm) |
–2 inches (–5 cm) |
| 50 inches | 55 to 66 inches
(139 to 168 cm) |
–2.4 inches (–6 cm) |
| 60 inches | 66 to 80 inches
(168 to 202 cm) |
–2.8 inches (–7 cm) |
| 80 inches | 89 to 106 inches
(225 to 270 cm) |
–3.9 inches (–10 cm) |
| 100 inches | 111 to 133 inches
(281 to 338 cm) |
–4.7 inches (–12 cm) |
| 150 inches | 167 to 200 inches
(424 to 509 cm) |
–7.1 inches (–18 cm) |
| 200 inches | 223 to 268 inches
(566 to 680 cm) |
–9.4 inches (–24 cm) |
| 320 inches | 357 to 429 inches
(907 to 1089 cm) |
–15.4 inches (–39 cm) |
PowerLite FH52+
| 16:9 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 30 inches | 34 to 56 inches
(87 to 142 cm) |
0 inches (0 cm) |
| 40 inches | 46 to 75 inches
(116 to 190 cm) |
0 inches (0 cm) |
| 50 inches | 57 to 94 inches
(146 to 238 cm) |
0 inches (0 cm) |
| 60 inches | 69 to 113 inches
(176 to 286 cm) |
0 inches (0 cm) |
| 80 inches | 93 to 150 inches
(235 to 382 cm) |
0 inches (0 cm) |
| 100 inches | 116 to 188 inches
(295 to 478 cm) |
0 inches (0 cm) |
| 150 inches | 174 to 283 inches
(443 to 719 cm) |
0 inches (0 cm) |
| 200 inches | 233 to 378 inches
(591 to 959 cm) |
0.4 inches (1 cm) |
| 250 inches | 291 to 472 inches
(740 to 1200 cm) |
0.4 inches (1 cm) |
| 300 inches | 350 to 567 inches
(888 to 1441 cm) |
0.4 inches (1 cm) |
