Matching the Screens Manually

You can manually correct the brightness and tint for multiple projectors.
Note: We recommend that you reset the following settings on the Image menu before beginning manual screen matching: Brightness, Contrast, Color Saturation, Tint, White Balance (all settings), Gamma, and RGBCMY.
  1. Press the Menu button.
  2. Select the Extended menu and press Enter.
  3. Select the Multi-Projection setting and press Enter.

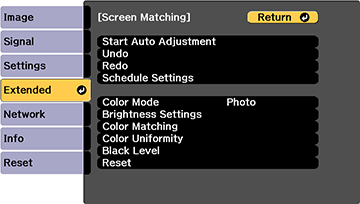

  4. Select the Screen Matching setting and press Enter. You see a screen like this:

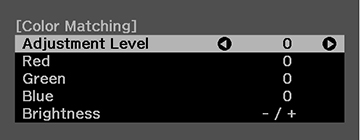

  5. Select the Color Matching setting and press Enter. You see this screen:


  6. Press the left or right arrow buttons to select a value for the Adjustment Level setting.
    Note: There are eight adjustment levels ranging from white to black and you can adjust each level individually.
  7. Press the left or right arrow buttons to adjust the color tone for the Red, Green, and Blue settings.
  8. Press the left or right arrow buttons to adjust the Brightness setting.
  9. Repeat the previous three steps as necessary to adjust each adjustment level.
  10. Press the Esc button to return to the previous screen.
Parent topic: Matching Tint and Brightness (Screen Matching)
