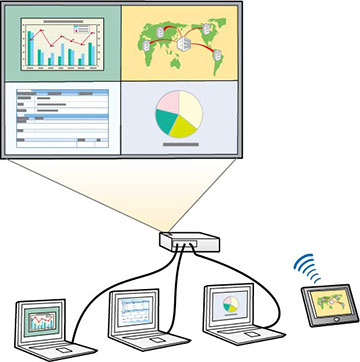

You
can use the split screen feature to simultaneously project from two
or four images from different image sources next to each other. You
can control the split screen feature using the remote control or
the projector menus.
Note: While
you use the split screen feature, other projector features may not
be available and some settings may be automatically applied to all
images.
Note: You
cannot use split screen with certain input source combinations. You
cannot perform split screen projection when the Connect ELPCB02 setting is set to
On in the Installation menu, or
if the Content Playback setting
is On in the Operation
menu.
Note: You may
not be able to perform split screen projection when you use the
Scale or Edge Blending features.
-
Press the Split button on the remote control.
Note: You can also select Split Screen from the Home screen.You are prompted for the number of screens.
- Select 2 Screens or 4 Screens, depending on the number of input sources you want to project. If you selected 2 Screens, the currently selected input source moves to the left side of the screen. If you selected 4 Screens and used the split screen feature to project four images before, the projected images are arranged in the same order as they were previously.

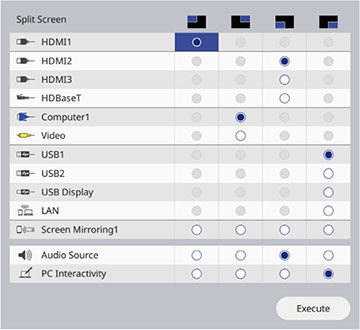

- Press the Menu button. You see a screen like this:
- Press the arrow and
Enter buttons to select an image
source for each section of the screen.
- To choose the audio you want to hear, select an input source as the Audio Source setting.
- If you selected 2 Screens and want to change the size of the images, select a sizing option as the Screen Size setting.
- Select Execute and press Enter.
- To exit the split screen feature, press the Split or Esc button.
