Using the Home Screen

You can select input sources and other frequently used options from the Home screen.
  1. To display the Home screen, do one of the following:
    • Press the Home button on the remote control.
    • Turn on the projector with the Home Screen Auto Disp setting enabled.
    • Turn on the projector when no signal is received from the selected input source.
  2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press Enter to select an option.

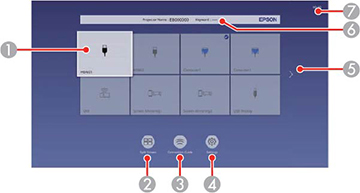

    1 Selects the source you want to project

    A checkmark appears in the upper right corner of the current input source. For most sources, a preview of the input image appears as a thumbnail.

    2 Projects images from two or four input sources simultaneously in a grid format
    3 Displays the Connection Guide

    You can view steps for different wireless connection methods depending on the devices you are using, such as smartphones or computers.

    4 Lets you select the following common projector settings (these settings may vary depending on other selected settings):
    • Color Mode
    • Brightness Level
    • Volume
    • Geometry Correction (H/V-Keystone and Quick Corner are available)
    • Aspect
    Note: The Geometry Correction setting is only displayed when Fixed Installation is set to Off and Geometry Correction is set to H/V-Keystone or Quick Corner in the projector's Installation menu.
    5 Moves to the previous or next page if there are more available input sources
    6 Displays the projector name and the projector keyword
    7 Displays the current time
    Note: The Home screen closes after 10 minutes of inactivity.
