Correcting Image Shape with Arc Correction

You can use the projector's Arc Correction setting to adjust the curve or arc of the sides of your image.
Note: If you change the Screen Type setting or adjust the image position, your image adjustments are reset.
  1. Turn on the projector and display an image.
  2. Press the Menu button.
  3. Select the Installation menu and press Enter.


  4. Select the Geometry Correction setting and press Enter.

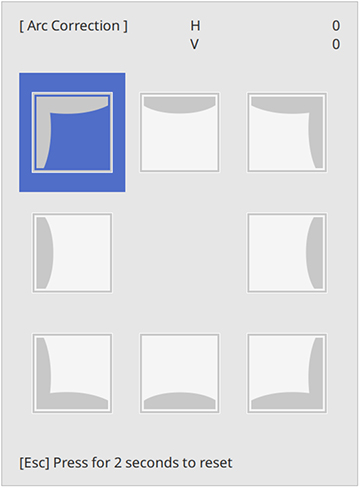

  5. Select the Arc Correction setting and press Enter. Then select Yes and press Enter again. You see the Arc Correction adjustment screen:


    Note: To reset your adjustments, press the Esc button for at least 2 seconds to display a reset screen, and select Yes.
  6. Use the arrow buttons on the projector or the remote control to select the corner or side of the image you want to adjust. Then press Enter.
  7. Press the arrow buttons to adjust the image shape as necessary.
  8. When you are finished, press Esc.
