Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

Note: If you change the Screen Type setting or adjust the image position, your image adjustments are reset.
  1. Turn on the projector and display an image.
  2. Press the Menu button.

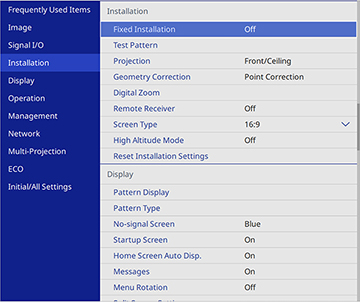

  3. Select the Installation menu and press Enter.

  4. Select the Geometry Correction setting and press Enter.
  5. Select the Quick Corner setting and press Enter.
    Note: You may see a confirmation screen. Select Yes and press Enter again.

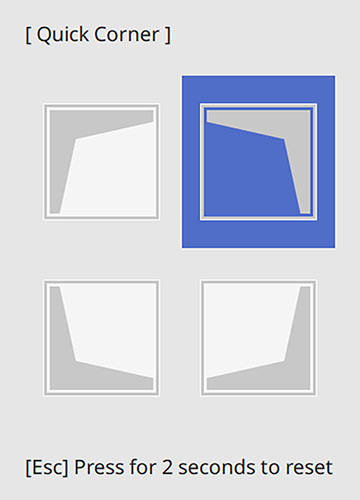

    You see the Quick Corner adjustment screen:

  6. Use the arrow buttons on the projector or remote control to select the corner of the image you want to adjust. Then press Enter.
    Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a reset screen. Then select Yes.
  7. Press the arrow buttons to adjust the image shape as necessary. Press Enter to return to the area selection screen.
    Note: You can also use the numeric buttons on the remote control to adjust the image shape. If one of the directional arrows on the screen turns gray, you cannot adjust the shape any further in that direction.
  8. When you are finished, press Esc.
The Geometry Correction setting is now set to Quick Corner in the projector's Installation menu. If you press the keystone adjustment buttons on the control panel, the area selection screen appears.
