Installing the Additional Wireless LAN Module

Your projector has a built-in wireless LAN module. If you install an optional Epson 802.11b/g/n wireless LAN module, you can use both network connection methods at the same time. When you install the wireless LAN module, set the Simple AP setting to On. Do not install any other type of wireless module.
Caution:
Never remove the module while its indicator light is blue or flashing, or while you are projecting wirelessly. You may damage the module or lose data.
Note: The wireless LAN module is not included with your projector.

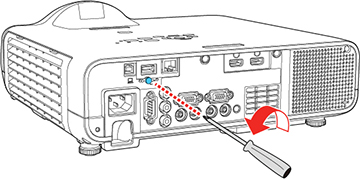

  1. Remove the wireless LAN module cover screw.

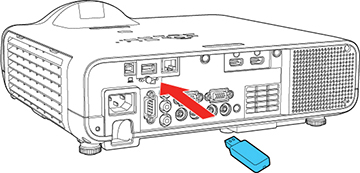

  2. Insert the wireless LAN module into a USB-A port.


  3. Attach the wireless LAN module cover and secure it using the screw you removed.


    The light on the wireless LAN module turns on when the module is installed and operating. The light flashes when the module is communicating over the network.
