Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

You can play sound through the projector's speaker system by connecting a commercially available RCA audio cable. Make sure the audio cable is labeled "No Resistance."

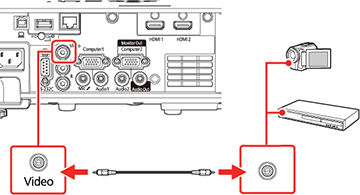

  1. Connect the cable with the yellow connector to your video source's yellow video output port.
  2. Connect the other end to the projector's Video port.

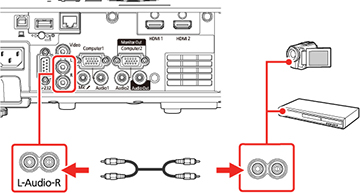

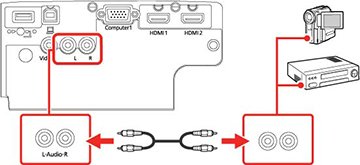

  3. Connect the audio cable to your video source's audio-out ports.
  4. Connect the other end to the projector's L and R audio ports.
