Using the Home Screen

You can select input sources and other frequently used options from the Home screen.

To display the Home screen, do one of the following:
- Press the Home button on the control panel or remote control.
- Turn on the projector with the Home Screen Auto Disp setting enabled.
- Turn on the projector when no signal is received from the selected input source.

Press the arrow buttons on the remote control or control panel to navigate the screen, and press

Enter to select an option.

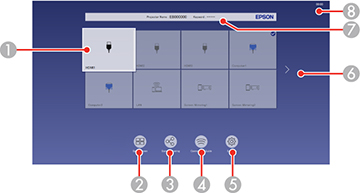

1	Selects the source you want to project A checkmark appears in the upper right corner of the current input source. For most sources, a preview of the input image appears as a thumbnail.
2	Projects images from two or four input sources simultaneously in a grid format
3	Receives shared images from other host projectors connected to the same network
4	Displays the Connection Guide You can view steps for different wireless connection methods depending on the devices you are using, such as smartphones or computers.
5	Lets you select the following common projector settings (these settings may vary depending on other selected settings): Color Mode Brightness Level Volume Geometry Correction (H/V-Keystone and Quick Corner are available) Aspect
6	Moves to the previous or next page if there are more available input sources
7	Displays the projector name and the projector keyword
8	Displays the current time

Note: The Home screen closes after 10 minutes of inactivity.
