Installing the Additional Wireless LAN Module

To use the additional wireless connections, install the optional Epson 802.11b/g/n wireless module in the projector.Your projector has a built-in wireless LAN module. If you install an optional Epson 802.11b/g/n wireless LAN module, you can use both network connection methods at the same time. When you install the wireless LAN module, set the Simple AP setting to On. Do not install any other type of wireless module.
Caution:
Never remove the module while its indicator light is blue or flashing, or while you are projecting wirelessly. You may damage the module or lose data.
Note: The wireless LAN module is not included with your projector.
  1. Turn off the projector and unplug the power cord.

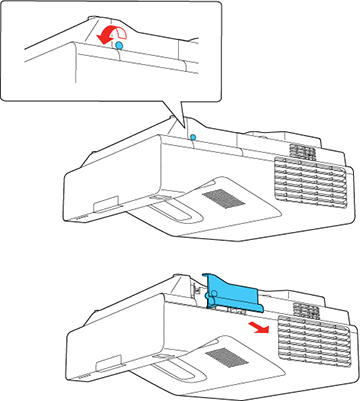

  2. Loosen the screw securing the LAN module cover and lift off the cover, if it is attached.

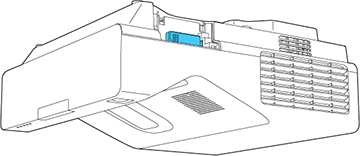

  3. Insert the wireless LAN module into the port shown here.


  4. Replace the cable cover and tighten the cable cover screws.
  5. Plug in and turn on the projector.
