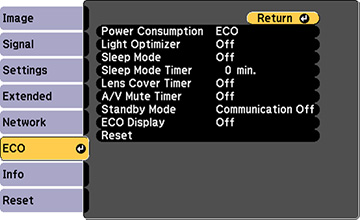

Settings on the ECO menu let you customize projector functions to save power. When you select a power-saving setting, a leaf icon appears next to the menu item.
| Setting | Options | Description |
|---|---|---|
| Power Consumption | High
Medium ECO |
Selects the brightness mode of the projector lamp.
Select ECO to reduce lamp
brightness and fan noise, and save power and lamp life.
Note: You
cannot select these settings when operating your projector at high
altitude or high temperature.
|
| Light Optimizer | On
Off |
When Power Consumption is set to High or Medium and Auto Iris is turned off, the lamp brightness is adjusted based on the projected image; you can set this option for each color mode |
| Sleep Mode | On
Off |
Automatically places the projector in standby mode after an interval of inactivity |
| Sleep Mode Timer | 1 to 30 minutes | Sets the interval for Sleep Mode |
| Lens Cover Timer | On
Off |
Automatically turns off the projector after 30 minutes if the lens cover is closed |
| A/V Mute Timer | On
Off |
Automatically turns off the projector after 30 minutes if A/V Mute is enabled |
| Standby Mode | Various options depending on your product's wired or wireless LAN support | Communication On:
indicates that the projector can be monitored and controlled over a
network when the projector is in standby mode (available when
A/V Output is set to Always On or While
Projecting)
Port: selects the port to use from Wired LAN or Wireless LAN when the Communication On setting is enabled |
| ECO Display | On
Off |
Displays a leaf icon in the bottom left corner of the projected screen to indicate the power-saving status when the lamp brightness changes |
| Reset | — | Resets all settings in the ECO menu to their defaults |
