The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).

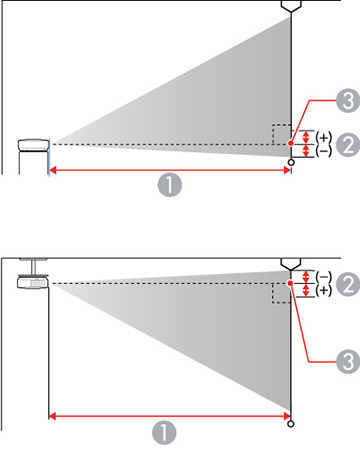

| 1 | Projection distance |
| 2 | Distance from the center of the lens to the base of the image |
| 3 | Center of lens |
PowerLite EB-L200W
| 16:10 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 29 inches | 33 to 55 inches
(85 to 140 cm) |
–0.4 inch (–1 cm) |
| 30 inches | 35 to 57 inches
(88 to 144 cm) |
–0.4 inch (–1 cm) |
| 40 inches | 46 to 76 inches
(118 to 193 cm) |
–0.4 inch (–1 cm) |
| 50 inches | 59 to 96 inches
(149 to 243 cm) |
–0.8 inch (–2 cm) |
| 60 inches | 70 to 115 inches
(179 to 292 cm) |
–0.8 inch (–2 cm) |
| 70 inches | 82 to 134 inches
(209 to 341 cm) |
–0.8 inch (–2 cm) |
| 80 inches | 94 to 154 inches
(239 to 390 cm) |
–1.2 inches (–3 cm) |
| 90 inches | 106 to 173 inches
(270 to 439 cm) |
–1.2 inches (–3 cm) |
| 100 inches | 118 to 192 inches
(300 to 488 cm) |
–1.2 inches (–3 cm) |
| 150 inches | 178 to 289 inches
(451 to 733 cm) |
–2 inches (–5 cm) |
| 200 inches | 237 to 385 inches
(603 to 979 cm) |
–2.4 inches (–6 cm) |
| 250 inches | 297 to 482 inches
(754 to 1224 cm) |
–3.1 inches (–8 cm) |
| 282 inches | 335 to 544 inches
(851 to 1381 cm) |
–3.5 inches (–9 cm) |
| 4:3 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 25 inches | 33 to 54 inches
(83 to 136 cm) |
–0.4 inch (–1 cm) |
| 30 inches | 39 to 65 inches
(100 to 164 cm) |
–0.4 inch (–1 cm) |
| 40 inches | 53 to 86 inches
(134 to 219 cm) |
–0.4 inch (–1 cm) |
| 50 inches | 67 to 108 inches
(169 to 275 cm) |
–0.8 inch (–2 cm) |
| 60 inches | 80 to 130 inches
(203 to 331 cm) |
–0.8 inch (–2 cm) |
| 70 inches | 93 to 152 inches
(237 to 386 cm) |
–1.2 inches (–3 cm) |
| 80 inches | 107 to 174 inches
(271 to 442 cm) |
–1.2 inches (–3 cm) |
| 90 inches | 120 to 196 inches
(306 to 497 cm) |
–1.2 inches (–3 cm) |
| 100 inches | 134 to 218 inches
(340 to 553 cm) |
–1.6 inches (–4 cm) |
| 150 inches | 201 to 327 inches
(511 to 831 cm) |
–2 inches (–5 cm) |
| 200 inches | 269 to 436 inches
(682 to 1108 cm) |
–2.8 inches (–7 cm) |
| 249 inches | 335 to 543 inches
(850 to 1380 cm) |
–3.5 inches (–9 cm) |
| 16:9 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 28 inches | 33 to 54 inches
(84 to 138 cm) |
0.4 inch (1 cm) |
| 30 inches | 36 to 59 inches
(91 to 149 cm) |
0.4 inch (1 cm) |
| 40 inches | 48 to 78 inches
(122 to 199 cm) |
0.4 inch (1 cm) |
| 50 inches | 60 to 98 inches
(153 to 249 cm) |
0.8 inch (2 cm) |
| 60 inches | 72 to 118 inches
(184 to 300 cm) |
0.8 inch (2 cm) |
| 70 inches | 85 to 138 inches
(215 to 350 cm) |
1.2 inches (3 cm) |
| 80 inches | 97 to 158 inches
(246 to 401 cm) |
1.2 inches (3 cm) |
| 90 inches | 109 to 178 inches
(277 to 451 cm) |
1.2 inches (3 cm) |
| 100 inches | 121 to 198 inches
(308 to 502 cm) |
1.6 inches (4 cm) |
| 150 inches | 183 to 297 inches
(464 to 754 cm) |
2 inches (5 cm) |
| 200 inches | 244 to 396 inches
(619 to 1006 cm) |
2.8 inches (7 cm) |
| 250 inches | 305 to 495 inches
(775 to 1258 cm) |
3.5 inches (9 cm) |
| 275 inches | 336 to 545 inches
(853 to 1384 cm) |
3.9 inches (10 cm) |
PowerLite EB-L200X
| 4:3 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 30 inches | 33 to 54 inches
(83 to 136 cm) |
–2 inches (–5 cm) |
| 40 inches | 44 to 72 inches
(111 to 182 cm) |
–2.4 inches (–6 cm) |
| 50 inches | 55 to 90 inches
(140 to 229 cm) |
–3.1 inches (–8 cm) |
| 60 inches | 67 to 108 inches
(169 to 275 cm) |
–3.5 inches (–9 cm) |
| 70 inches | 76 to 126 inches
(197 to 321 cm) |
–4.3 inches (–11 cm) |
| 80 inches | 89 to 145 inches
(226 to 368 cm) |
–5.1 inches (–13 cm) |
| 90 inches | 100 to 163 inches
(254 to 414 cm) |
–5.5 inches (–14 cm) |
| 100 inches | 111 to 181 inches
(283 to 460 cm) |
–6.3 inches (–16 cm) |
| 150 inches | 168 to 272 inches
(426 to 692 cm) |
–9.4 inches (–24 cm) |
| 200 inches | 224 to 363 inches
(568 to 923 cm) |
–12.2 inches (–31 cm) |
| 250 inches | 280 to 455 inches
(711 to 1155 cm) |
–15.4 inches (–39 cm) |
| 300 inches | 336 to 546 inches
(854 to 1386 cm) |
–18.5 inches (–47 cm) |
| 16:9 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 28 inches | 33 to 54 inches
(84 to 138 cm) |
0.4 inch (1 cm) |
| 30 inches | 36 to 59 inches
(91 to 149 cm) |
0.4 inch (1 cm) |
| 40 inches | 48 to 78 inches
(122 to 199 cm) |
0.4 inch (1 cm) |
| 50 inches | 60 to 98 inches
(153 to 249 cm) |
0.8 inch (2 cm) |
| 60 inches | 72 to 118 inches
(184 to 300 cm) |
0.8 inch (2 cm) |
| 70 inches | 85 to 138 inches
(215 to 350 cm) |
1.2 inches (3 cm) |
| 80 inches | 97 to 158 inches
(246 to 401 cm) |
1.2 inches (3 cm) |
| 90 inches | 109 to 178 inches
(277 to 451 cm) |
1.2 inches (3 cm) |
| 100 inches | 121 to 198 inches
(308 to 502 cm) |
1.6 inches (4 cm) |
| 150 inches | 183 to 297 inches
(464 to 754 cm) |
2 inches (5 cm) |
| 200 inches | 244 to 396 inches
(619 to 1006 cm) |
2.8 inches (7 cm) |
| 250 inches | 305 to 495 inches
(775 to 1258 cm) |
3.5 inches (9 cm) |
| 275 inches | 336 to 545 inches
(853 to 1384 cm) |
3.9 inches (10 cm) |
| 16:10 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 29 inches | 33 to 55 inches
(85 to 140 cm) |
–0.4 inch (–1 cm) |
| 30 inches | 35 to 57 inches
(88 to 144 cm) |
–0.4 inch (–1 cm) |
| 40 inches | 46 to 76 inches
(118 to 193 cm) |
–0.4 inch (–1 cm) |
| 50 inches | 59 to 96 inches
(149 to 243 cm) |
–0.8 inch (–2 cm) |
| 60 inches | 70 to 115 inches
(179 to 292 cm) |
–0.8 inch (–2 cm) |
| 70 inches | 82 to 134 inches
(209 to 341 cm) |
–0.8 inch (–2 cm) |
| 80 inches | 94 to 154 inches
(239 to 390 cm) |
–1.2 inches (–3 cm) |
| 90 inches | 106 to 173 inches
(270 to 439 cm) |
–1.2 inches (–3 cm) |
| 100 inches | 118 to 192 inches
(300 to 488 cm) |
–1.2 inches (–3 cm) |
| 150 inches | 178 to 289 inches
(451 to 733 cm) |
–2 inches (–5 cm) |
| 200 inches | 237 to 385 inches
(603 to 979 cm) |
–2.4 inches (–6 cm) |
| 250 inches | 297 to 482 inches
(754 to 1224 cm) |
–3.1 inches (–8 cm) |
| 283 inches | 336 to 546 inches
(854 to 1386 cm) |
–3.5 inches (–9 cm) |
