Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front


Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.

Note: The projector is not intended to be ceiling- or wall-mounted. Do not mount the projector on a ceiling or a wall. It could fall and cause damage or injury.

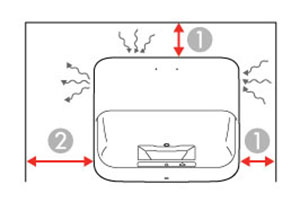

Installation space

Be sure to leave the following amount of space around the projector so as to not block the air exhaust or intake vents.


1 3.9 inches (10 cm)
2 12 inches (30 cm)
