You can place originals up to this size on the
scanner glass: Letter (8.5 × 11 inches
[216 × 279 mm]) or A4
(8.3 × 11.7 inches [210 × 297 mm])
for the ET-8500 or Legal
(8.5 × 14 inches [216 × 356 mm])
for the ET-8550.
icon and select - Open the document cover.

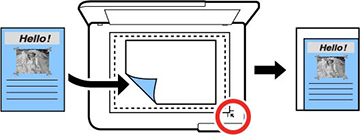

- Place your original facedown on the scanner glass with the
top facing into the corner. Slide the original to the edges of the
indicated corner.
Note: The edges of your original may be cropped by 0.06 inch (1.5 mm) from the edge of the scanner glass. Manually position your original away from the edges to prevent cropping.
- Close the document cover gently to keep your original in
place.
Caution:Do not push down on the document cover or scanner glass or you may damage the product.
