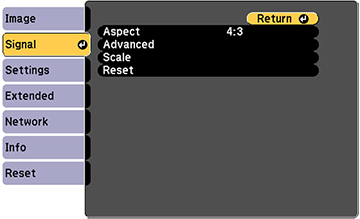

Input Signal Settings - Signal Menu

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
Aspect See the list of available aspect ratios Sets the aspect ratio (width-to-height ratio) for the selected input source
Advanced HDMI Video Range Sets the video range to match the setting of the device connected to the HDMI input port
  • Auto: detects the video range automatically
  • Normal: normally for images from a device other than a computer; select if the black areas of the image are too bright
  • Expanded: normally for images from a computer; select if the image is too dark
Scale Varying levels available Adjusts the size and position of the image displayed by each projector when using multiple projectors to project one image
Reset Resets all the adjustment values in the Signal menu back to the default settings
