You can set up or install your projector in the
following ways:
Mounted on a ceiling or lighting track
Placed on the floor or on a table or portable cart
Note: Use the
direct mount (included) only for mounting the projector on a wall
or ceiling. If installing on a lighting track, use only the
optional lighting track mount (ELPMB66). If you do not mount the
projector, use only the optional floor stand (ELPMB55).

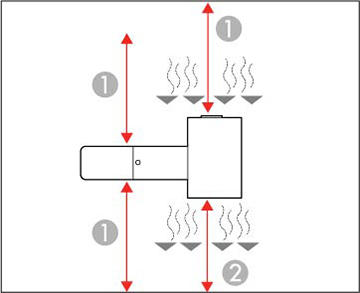

Note: Be sure
to leave at least the following amount of space around the
projector to avoid blocking the air exhaust and intake vents.
When installing the projector on a ceiling or
wall, make sure it is not close to the air exhaust vent of an air
conditioner.
1 |
11.8 inches (30
cm) |
2 |
7.8 inches (20 cm) |
If you are installing multiple projectors next to
each other, be sure to leave at least 20 inches (50 cm) of space
between the projectors. Also make sure heated air from an exhaust
vent does not go into the air intake vent of another projector.

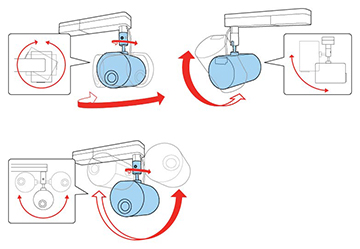

You can rotate the projection unit 360 degrees
horizontally and 90 degrees vertically. You can also tilt the image
90 degrees in either direction.
Make sure to select the correct Projection setting in the Extended menu.
