Attaching and Removing the Cable Clips

You can install the cable clips that came with your projector to provide additional support to the power cord and HDMI cable.
  1. Connect the power cord and HDMI cable to the projector.

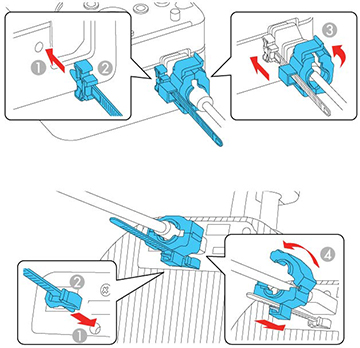

  2. Insert the end of each cable clip anchor into the cable clip slot above the power inlet and HDMI port as shown.


    1 Cable clip slot
    2 Cable clip anchor
    3 Power cable clip
    4 HDMI cable clip
  3. Place the open cable clips around the power cord and HDMI cable, but do not lock them.
  4. Slide each cable clip onto the anchors and lock the clips onto the power and HDMI anchors as shown.
To remove the cable clips, open the clips and disconnect the cables. Then pinch the sides of each cable clip anchor and carefully pull them out of the cable clip slots.
Parent topic: Setting Up the Projector
