You

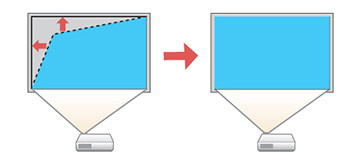

can use the projector's Quick Corner setting to correct the shape
and size of an image that is unevenly rectangular on all sides.
Note: If you
change the Screen Type setting or
adjust the image position, your image adjustments are
reset.
Turn on the projector and display an image.
Press the Menu button.
Select the Installation menu and press
Enter.
Select the Geometry Correction setting and press
Enter.
Select the Quick Corner
setting and press Enter.
Note: You may see
a confirmation screen. Select Yes
and press Enter again.

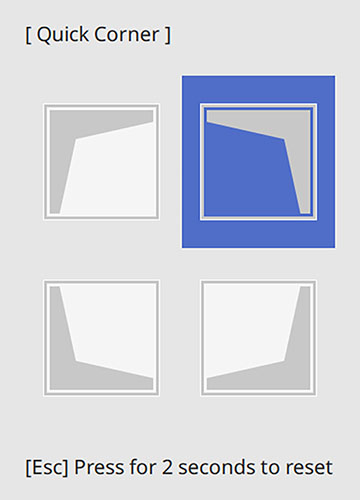

You see the Quick Corner adjustment screen:
Note: To reset
your adjustments, press and hold the Esc button for at least 2 seconds to display a
reset screen. Then select Yes.
Use the arrow buttons on the projector or remote
control to select the corner of the image you want to
adjust. Then press Enter.
Press the arrow buttons to adjust the image shape as
necessary. Press Enter to return to the area selection
screen.
Note: You can also
use the numeric buttons on the remote control to adjust the image
shape. If one of the directional arrows on the screen turns gray,
you cannot adjust the shape any further in that
direction.
When you are finished, press Esc.
The Geometry Correction setting is now set to
Quick Corner in the projector's
Installation menu. If you press the keystone adjustment buttons on
the control panel, the area selection screen appears.
