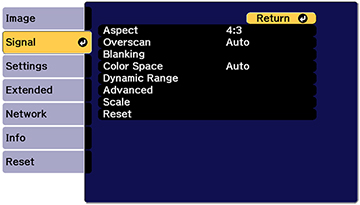

Input Signal Settings - Signal Menu

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.



Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Auto button on the remote control.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
Resolution Auto

Normal

Wide

Manual
Sets the input signal resolution from an analog RGB computer connection

Auto: detects the resolution automatically

Normal: for 4:3 or 5:4 screens

Wide: for widescreen

Manual: allows you to specify a resolution

Aspect See the list of available aspect ratios Sets the aspect ratio (width-to-height ratio) for the selected input source
Tracking Varying levels available Adjusts signal to eliminate vertical stripes in images from an analog RGB computer connection
Sync. Varying levels available Adjusts signal to eliminate fuzziness or flickering in images from an analog RGB computer connection
Position Up, down, left, right Adjusts the image location on the screen from an analog RGB computer connection
Auto Setup On

Off

Automatically optimizes image quality from an analog RGB computer connection (when On)
Overscan Auto

Off

4%

8%

Changes the output image ratio
Color Space Auto

BT.709

BT.2020

Changes the color space based on the input image; select Auto to apply a suitable color space for the AVI InfoFrame of the image
Dynamic Range Dynamic Range

Signal Status

HDR10 Setting

HLG Setting

Sets the video range to match the input source setting

Dynamic Range: select Auto to automatically identify the dynamic range of the input signal

Signal Status: displays the selected setting

HDR10 Setting: adjusts the PQ curve of the dynamic range

HLG Setting: adjusts the HLG curve of the dynamic range

Blanking Up, down, left, right Hides an area of the projected image that you select using the arrow buttons
Advanced Video Range Sets the video range to match the setting of the device connected to the HDMI, DVI-D, or HDBaseT input ports
EDID Describes the projector's display capabilities to devices connected to the HDMI, HDBaseT, or DVI-D input ports
Scale Various scale options When using multiple projectors to project one image, adjusts the scale of the image displayed by each projector
Reset Resets all the Signal menu settings to their defaults
