Replacing the Air Filter

You need to replace the air filter in the following situations:

You can replace the air filter while the projector is mounted to the ceiling or placed on a table.

  1. Turn off the projector and unplug the power cord.

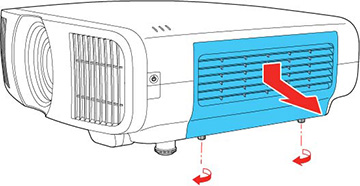

  2. Loosen the screws and remove the air filter cover.

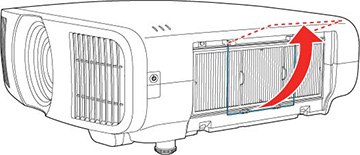

  3. Raise the stopper.


  4. Pull the air filter out of the projector.


    Note: Air filters contain polypropylene. Dispose of used air filters according to local regulations.
  5. Place the new air filter in the projector as shown.


  6. Lower the stopper and press until it clicks into place.

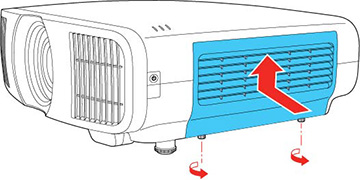

  7. Replace the air filter cover and tighten the screws as shown.
