You

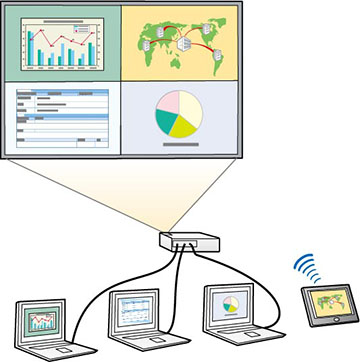

can use the split screen feature to simultaneously project from two
or four images from different image sources next to each other.
Note: While
you use the split screen feature, other projector features may not
be available and some settings may be automatically applied to all
images.
Note: You
cannot use split screen with certain input source
combinations.
-

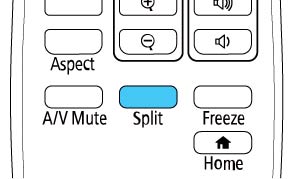

Press the Split button on the remote control.
Note: You can also select Split Screen from the Home screen.You are prompted for the number of screens.
- Select 2 Screens or 4 Screens, depending on the number of input sources you want to project. If you selected 2 Screens, the currently selected input source moves to the left side of the screen. If you selected 4 Screens and used the split screen feature to project four images before, the projected images are arranged in the same order as they were previously.

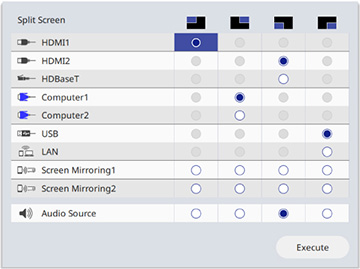

- Press the Menu button. You see a screen like this:
- Press the arrow and
Enter buttons to select an image
source for each section of the screen.
- To choose the audio you want to hear, select an input source as the Audio Source setting.
- If you selected 2 Screens and want to change the size of the images, select a sizing option as the Screen Size setting.
- Select Execute and press Enter.
- To exit the split screen feature, press the Split or Esc button.
