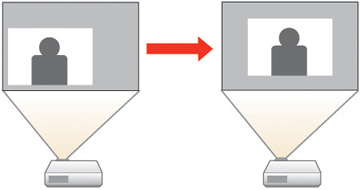

Adjusting the Image Position Using Image Shift

You can use the Image Shift feature to adjust the image position without moving the projector (PowerLite EB-L630SU/EB-L635SU). Wait at least 20 minutes after you start projecting to adjust the image position.



Note: This feature is not available if the Zoom option is set to the widest setting.
  1. Turn on the projector and display an image.
  2. Adjust the image size using the right and left arrow buttons. After you adjust the image size, the Image Shift screen is displayed automatically.
  3. Use the arrow buttons on the projector or remote control to adjust the image position.
    Note: You can also use the Installation menu to adjust the Image Shift setting.
  4. Press Esc to close the Image Shift screen. The screen closes if no operation is performed for approximately 10 seconds.
Note: The Image Shift setting is retained even if the projector is turned off; however, you need to readjust the image position if you change the projector's location or angle.
Parent topic: Using Basic Projector Features
