Adjusting the Image Position Using Screen Position

You can adjust the image position if there are margins between the edge of the image and the projected screen frame.
Note: You cannot adjust the screen position if the Screen Type setting is set to 16:10.
  1. Turn on the projector and display an image.
  2. Press the Menu button.

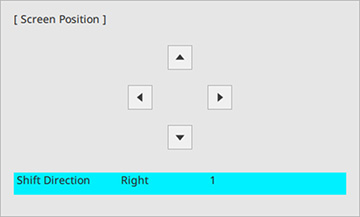

  3. Select Installation > Screen Position and press Enter.
  4. Use the arrow buttons on the remote control or projector to adjust the position of the image.


  5. When you are finished, press the Esc button.
Parent topic: Using Basic Projector Features
