The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).
PowerLite EB-L530U/EB-L630U/EB-L730U/EB-L735U

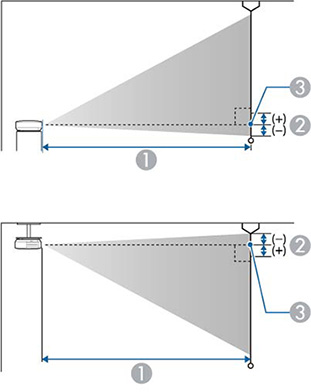

| 1 | Projection distance |
| 2 | Distance from the center of the lens to the base of the screen (this varies depending on vertical lens shift setting) |
| 3 | Center of lens |
| 16:10 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 50 inches | 57 to 93 inches
(144 to 235 cm) |
–26.5 to 0 inches (–67 to 0 cm) |
| 60 inches | 68 to 111 inches
(174 to 283 cm) |
–31.8 to 0 inches (–81 to 0 cm) |
| 70 inches | 80 to 130 inches
(204 to 331 cm) |
–37.1 to 0 inches (–94 to 0 cm) |
| 80 inches | 92 to 149 inches
(233 to 378 cm) |
–42.4 to 0 inches (–108 to 0 cm) |
| 100 inches | 115 to 187 inches
(292 to 474 cm) |
–53 to 0 inches (–135 to 0 cm) |
| 120 inches | 138 to 224 inches
(351 to 569 cm) |
–63.6 to 0 inches (–162 to 0 cm) |
| 150 inches | 173 to 281 inches
(440 to 713 cm) |
–79.5 to 0 inches (–202 to 0 cm) |
| 200 inches | 232 to 375 inches
(588 to 951 cm) |
–106 to 0 inches (–269 to 0 cm) |
| 300 inches | 348 to 563 inches
(884 to 1429 cm) |
–159 to 0 inches (–404 to 0 cm) |
| 500 inches | 581 to 938 inches
(1476 to 2384 cm) |
–265 to 0 inches (–673 to 0 cm) |
| 4:3 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 45 inches | 58 to 94 inches
(147 to 240 cm) |
–27 to 0 inches (–69 to 0 cm) |
| 50 inches | 65 to 105 inches
(164 to 267 cm) |
–30 to 0 inches (–76 to 0 cm) |
| 60 inches | 78 to 126 inches
(197 to 321 cm) |
–36 to 0 inches (–91 to 0 cm) |
| 70 inches | 91 to 148 inches
(231 to 375 cm) |
–42 to 0 inches (–107 to 0 cm) |
| 80 inches | 104 to 169 inches
(264 to 429 cm) |
–48 to 0 inches (–122 to 0 cm) |
| 100 inches | 130 to 211 inches
(331 to 537 cm) |
–60 to 0 inches (–152 to 0 cm) |
| 120 inches | 157 to 254 inches
(398 to 645 cm) |
–72 to 0 inches (–183 to 0 cm) |
| 150 inches | 196 to 318 inches
(499 to 807 cm) |
–90 to 0 inches (–229 to 0 cm) |
| 200 inches | 262 to 424 inches
(666 to 1077 cm) |
–120 to 0 inches (–305 to 0 cm) |
| 300 inches | 394 to 637 inches
(1001 to 1618 cm) |
–180 to 0 inches (–457 to 0 cm) |
| 440 inches | 579 to 935 inches
(1470 to 2375 cm) |
–264 to 0 inches (–671 to 0 cm) |
| 16:9 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 49 inches | 57 to 93 inches
(145 to 237 cm) |
–25.4 to 1.3 inches (–64 to 3 cm) |
| 50 inches | 58 to 95 inches
(148 to 242 cm) |
–25.9 to 1.4 inches (–66 to 3 cm) |
| 60 inches | 70 to 115 inches
(179 to 291 cm) |
–31 to 1.6 inches (–79 to 4 cm) |
| 70 inches | 82 to 134 inches
(209 to 340 cm) |
–36.2 to 1.9 inches (–92 to 5 cm) |
| 80 inches | 94 to 153 inches
(240 to 389 cm) |
–41.4 to 2.2 inches (–105 to 6 cm) |
| 100 inches | 118 to 192 inches
(301 to 487 cm) |
–51.7 to 2.7 inches (–131 to 7 cm) |
| 120 inches | 142 to 230 inches
(361 to 585 cm) |
–62.1 to 3.3 inches (–158 to 8 cm) |
| 150 inches | 178 to 288 inches
(453 to 733 cm) |
–77.6 to 4.1 inches (–197 to 10 cm) |
| 200 inches | 238 to 385 inches
(605 to 978 cm) |
–103.5 to 5.4 inches (–263 to 14 cm) |
| 300 inches | 385 to 578 inches
(909 to 1496 cm) |
–155.2 to 8.2 inches (–394 to 21 cm) |
| 486 inches | 580 to 938 inches
(1474 to 2381 cm) |
–251.5 to 13.2 inches (–639 to 34 cm) |
| 16:6 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 46 inches | 58 to 94 inches
(147 to 239 cm) |
–21.5 to 5.4 inches (–55 to 14 cm) |
| 50 inches | 63 to 102 inches
(160 to 260 cm) |
–23.4 to 5.9 inches (–59 to 15 cm) |
| 60 inches | 76 to 123 inches
(192 to 313 cm) |
–28.1 to 7 inches (–71 to 18 cm) |
| 70 inches | 89 to 144 inches
(225 to 366 cm) |
–32.8 to 8.2 inches (–83 to 21 cm) |
| 80 inches | 101 to 165 inches
(258 to 418 cm) |
–37.5 to 9.4 inches (–95 to 24 cm) |
| 100 inches | 127 to 206 inches
(323 to 524 cm) |
–46.8 to 11.7 inches (–119 to 30 cm) |
| 120 inches | 153 to 248 inches
(388 to 629 cm) |
–56.2 to 14 inches (–143 to 36 cm) |
| 150 inches | 192 to 310 inches
(486 to 787 cm) |
–70.2 to 17.6 inches (–178 to 45 cm) |
| 200 inches | 256 to 414 inches
(650 to 1051 cm) |
–93.6 to 23.4 inches (–238 to 59 cm) |
| 300 inches | 384 to 621 inches
(976 to 1578 cm) |
–140.4 to 35.1 inches (–357 to 89 cm) |
| 452 inches | 580 to 937 inches
(1473 to 2379 cm) |
–211.6 to 52.9 inches (–537 to 134 cm) |
PowerLite EB-L630SU/EB-L635SU
| 1 | Projection distance |
| 2 | Distance from the center of the lens to the base of the screen (this varies depending on vertical lens shift setting) |
| 3 | Center of lens |
| 16:10 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 37 inches | 24* to 33 inches
(62* to 84 cm) |
–19.6 to 0 inches (–50 to 0 cm) |
| 50 inches | 33 to 45 inches
(85 to 115 cm) |
–26.5 to 0 inches (–67 to 0 cm) |
| 60 inches | 40 to 55 inches
(103 to 139 cm) |
–31.8 to 0 inches (–81 to 0 cm) |
| 80 inches | 54 to 73 inches
(138 to 186 cm) |
–42.4 to 0 inches (–108 to 0 cm) |
| 90 inches | 61 to 83 inches
(156 to 210 cm) |
–47.7 to 0 inches (–121 to 0 cm) |
| 100 inches | 68 to 92 inches
(173 to 234 cm) |
–53 to 0 inches (–135 to 0 cm) |
| 148 inches | 101 to 137 inches
(258 to 348 cm) |
–78.4 to 0 inches (–199 to 0 cm) |
| 150 inches | 103 to 139* inches
(261 to 353* cm) |
–79.5 to 0 inches (–202 to 0 cm) |
| 180 inches | 124 to 167* inches
(314 to 424* cm) |
–95.4 to 0 inches (–242 to 0 cm) |
| 200 inches | 138 to 186* inches
(349 to 472* cm) |
–106 to 0 inches (–269 to 0 cm) |
| 4:3 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 33 inches | 25* to 33 inches
(63* to 85 cm) |
–19.8 to 0 inches (–50 to 0 cm) |
| 45 inches | 34 to 46 inches
(87 to 117 cm) |
–27 to 0 inches (–69 to 0 cm) |
| 50 inches | 38 to 51 inches
(97 to 131 cm) |
–30 to 0 inches (–76 to 0 cm) |
| 60 inches | 46 to 62 inches
(117 to 157 cm) |
–36 to 0 inches (–91 to 0 cm) |
| 80 inches | 62 to 83 inches
(157 to 211 cm) |
–48 to 0 inches (–122 to 0 cm) |
| 90 inches | 69 to 94 inches
(176 to 238 cm) |
–54 to 0 inches (–137 to 0 cm) |
| 100 inches | 77 to 104 inches
(196 to 265 cm) |
–60 to 0 inches (–152 to 0 cm) |
| 120 inches | 93 to 126 inches
(236 to 319 cm) |
–72 to 0 inches (–183 to 0 cm) |
| 130 inches | 101 to 136 inches
(256 to 346 cm) |
–78 to 0 inches (–198 to 0 cm) |
| 150 inches | 117 to 157* inches
(296 to 400* cm) |
–90 to 0 inches (–229 to 0 cm) |
| 176 inches | 137 to 185* inches
(348 to 470* cm) |
–105.6 to 0 inches (–268 to 0 cm) |
| 16:9 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 36 inches | 24* to 33 inches
(62* to 84 cm) |
–18.6 to 1.0 inches (–47 to 2 cm) |
| 49 inches | 34 to 46 inches
(86 to 116 cm) |
–25.4 to 1.3 inches (–64 to 3 cm) |
| 50 inches | 34 to 47 inches
(88 to 118 cm) |
–25.9 to 1.4 inches (–66 to 3 cm) |
| 60 inches | 42 to 56 inches
(106 to 143 cm) |
–31 to 1.6 inches (–79 to 4 cm) |
| 80 inches | 56 to 75 inches
(142 to 191 cm) |
–41.4 to 2.2 inches (–105 to 6 cm) |
| 100 inches | 70 to 95 inches
(178 to 240 cm) |
–51.7 to 2.7 inches (–131 to 7 cm) |
| 120 inches | 84 to 114 inches
(214 to 289 cm) |
–62.1 to 3.3 inches (–158 to 8 cm) |
| 144 inches | 101 to 137 inches
(258 to 348 cm) |
–74.5 to 3.9 inches (–189 to 10 cm) |
| 150 inches | 106 to 143* inches
(269 to 363* cm) |
–77.6 to 4.1 inches (–197 to 10 cm) |
| 180 inches | 127 to 172* inches
(323 to 436* cm) |
–93.1 to 4.9 inches (–237 to 12 cm) |
| 194 inches | 137 to 185* inches
(348 to 470* cm) |
–100.4 to 5.3 inches (–255 to 13 cm) |
| 16:6 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 34 inches | 25* to 34 inches
(63* to 85 cm) |
–15.9 to 4 inches (–40 to 10 cm) |
| 46 inches | 34 to 46 inches
(86 to 117 cm) |
–21.5 to 5.4 inches (–55 to 14 cm) |
| 50 inches | 37 to 50 inches
(94 to 127 cm) |
–23.4 to 5.9 inches (–59 to 15 cm) |
| 60 inches | 45 to 60 inches
(114 to 153 cm) |
–28.1 to 7 inches (–71 to 18 cm) |
| 80 inches | 60 to 81 inches
(153 to 206 cm) |
–37.5 to 9.4 inches (–95 to 24 cm) |
| 100 inches | 75 to 102 inches
(191 to 259 cm) |
–46.8 to 11.7 inches (–119 to 30 cm) |
| 120 inches | 91 to 122 inches
(230 to 311 cm) |
–56.2 to 14 inches (–143 to 36 cm)) |
| 134 inches | 101 to 137 inches
(258 to 348 cm) |
–62.7 to 15.7 inches (–159 to 40 cm) |
| 150 inches | 114 to 153* inches
(289 to 390* cm) |
–70.2 to 17.6 inches (–178 to 45 cm) |
| 180 inches | 137 to 184* inches
(347 to 469* cm) |
–84.3 to 21.1 inches (–214 to 54 cm) |
| 181 inches | 137 to 186* inches
(349 to 471* cm) |
–84.7 to 21.2 inches (–215 to 54 cm) |
PowerLite EB-L520U
| 1 | Projection distance |
| 2 | Distance from the center of the lens to the base of the screen |
| 3 | Center of lens |
| 16:10 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 50 inches | 57 to 93 inches
(144 to 235 cm) |
–1 to 25.5 inches (–2 to 65 cm) |
| 60 inches | 68 to 111 inches
(174 to 283 cm) |
–1.1 to 30.7 inches (–3 to 78 cm) |
| 70 inches | 80 to 130 inches
(204 to 331 cm) |
–1.3 to 35.8 inches (–3 to 91 cm) |
| 80 inches | 92 to 149 inches
(233 to 378 cm) |
–1.5 to 40.9 inches (–4 to 104 cm) |
| 100 inches | 115 to 187 inches
(292 to 474 cm) |
–1.9 to 51.1 inches (–5 to 130 cm) |
| 120 inches | 138 to 224 inches
(351 to 569 cm) |
–2.3 to 61.3 inches (–6 to 156 cm) |
| 150 inches | 173 to 281 inches
(440 to 713 cm) |
–2.9 to 76.6 inches (–7 to 195 cm) |
| 200 inches | 232 to 375 inches
(588 to 951 cm) |
–3.8 to 102.2 inches (–10 to 260 cm) |
| 300 inches | 348 to 563 inches
(884 to 1429 cm) |
–5.7 to 153.3 inches (–14 to 389 cm) |
| 500 inches | 581 to 938 inches
(1476 to 2384 cm) |
–9.5 to 255.5 inches (–24 to 649 cm) |
| 4:3 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 45 inches | 58 to 94 inches
(147 to 240 cm) |
–1 to 26 inches (–2 to 66 cm) |
| 50 inches | 65 to 105 inches
(164 to 267 cm) |
–1.1 to 28.9 inches (–3 to 73 cm) |
| 60 inches | 78 to 126 inches
(197 to 321 cm) |
–1.3 to 34.7 inches (–3 to 88 cm) |
| 70 inches | 91 to 148 inches
(231 to 375 cm) |
–1.5 to 40.5 inches (–4 to 103 cm) |
| 80 inches | 104 to 169 inches
(264 to 429 cm) |
–1.7 to 46.3 inches (–4 to 118 cm) |
| 100 inches | 130 to 211 inches
(331 to 537 cm) |
–2.2 to 57.8 inches (–5 to 147 cm) |
| 120 inches | 157 to 254 inches
(398 to 645 cm) |
–2.6 to 69.4 inches (–7 to 176 cm) |
| 150 inches | 196 to 318 inches
(499 to 807 cm) |
–3.2 to 86.8 inches (–8 to 220 cm) |
| 200 inches | 262 to 424 inches
(666 to 1077 cm) |
–4.3 to 115.7 inches (–11 to 294 cm) |
| 300 inches | 394 to 637 inches
(1001 to 1618 cm) |
–6.5 to 173.5 inches (–16 to 441 cm) |
| 440 inches | 579 to 935 inches
(1470 to 2375 cm) |
–9.5 to 254.5 inches (–24 to 646 cm) |
| 16:9 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 49 inches | 57 to 93 inches
(145 to 237 cm) |
–0.4 to 24.4 inches (–1 to 62 cm) |
| 50 inches | 58 to 95 inches
(148 to 242 cm) |
–0.4 to 24.9 inches (–1 to 63 cm) |
| 60 inches | 70 to 115 inches
(179 to 291 cm) |
–0.5 to 29.9 inches (–1 to 76 cm) |
| 70 inches | 82 to 134 inches
(209 to 340 cm) |
–0.5 to 34.9 inches (–1 to 89 cm) |
| 80 inches | 94 to 153 inches
(240 to 389 cm) |
–0.6 to 39.8 inches (–2 to 101 cm) |
| 100 inches | 118 to 192 inches
(301 to 487 cm) |
–0.8 to 49.8 inches (–2 to 126 cm) |
| 120 inches | 142 to 230 inches
(361 to 585 cm) |
–0.9 to 59.8 inches (–2 to 152 cm) |
| 150 inches | 178 to 288 inches
(453 to 733 cm) |
–1.2 to 74.7 inches (–3 to 190 cm) |
| 200 inches | 238 to 385 inches
(605 to 978 cm) |
–1.5 to 99.6 inches (–4 to 253 cm) |
| 300 inches | 385 to 578 inches
(909 to 1496 cm) |
–2.3 to 149.4 inches (–6 to 379 cm) |
| 486 inches | 580 to 938 inches
(1474 to 2381 cm) |
–3.7 to 242 inches (–9 to 615 cm) |
| 16:6 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Distance from center of lens to base of screen (2) |
| 46 inches | 58 to 94 inches
(147 to 239 cm) |
–4.4 to 20.6 inches (–11 to 52 cm) |
| 50 inches | 63 to 102 inches
(160 to 260 cm) |
–4.8 to 22.4 inches (–12 to 57 cm) |
| 60 inches | 76 to 123 inches
(192 to 313 cm) |
–5.8 to 26.8 inches (–15 to 68 cm) |
| 70 inches | 89 to 144 inches
(225 to 366 cm) |
–6.7 to 31.3 inches (–17 to 80 cm) |
| 80 inches | 101 to 165 inches
(258 to 418 cm) |
–7.7 to 35.8 inches (–20 to 91 cm) |
| 100 inches | 127 to 206 inches
(323 to 524 cm) |
–9.6 to 44.7 inches (–24 to 114 cm) |
| 120 inches | 153 to 248 inches
(388 to 629 cm) |
–11.5 to 53.7 inches (–29 to 136 cm) |
| 150 inches | 192 to 310 inches
(486 to 787 cm) |
–14.4 to 67.1 inches (–37 to 170 cm) |
| 200 inches | 256 to 414 inches
(650 to 1051 cm) |
–18.2 to 89.4 inches (–49 to 227 cm) |
| 300 inches | 384 to 621 inches
(976 to 1578 cm) |
–28.8 to 134.1 inches (–73 to 341 cm) |
| 452 inches | 580 to 937 inches
(1473 to 2379 cm) |
–43.4 to 202.1 inches (–110 to 513 cm) |
