In the illustrations below, the gray area represents
the printable area; the white arrow indicates the direction in
which the paper is ejected. If the margin set in an application is
larger than the following setting values, sections beyond the
specified margins are not printed. For example, if 15 mm is
selected for the left and right margins in the printer menus and
the document fills the page, the 15 mm at the left and right sides
of the page will not be printed.
Note: When
printing borderless, quality may decline in the expanded printable
area.

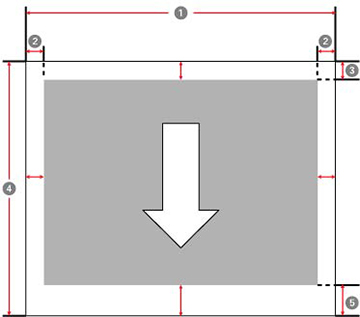

Roll paper
Note: Margins may
change depending on the Top Margin
setting that you select. If you select Save
Roll Paper as the Roll Paper Option on the printer driver's
Advanced tab, the top and bottom margins of the paper are set to 0
mm. The margins listed below are the standard settings. When
printing with the left and right borderless setting, the left and
right margins are set to 0 mm. When printing with the borderless on
all sides setting, all margins are set to 0 mm.
1 |
Printable width: Varies by model (see
the link below) |
2 |
Left/right margin: 0.12 to 0.59 inches (3 to 15
mm) |
3 |
Top margin: 0.12 to 0.59 inches (3 to 15 mm)* |
4 |
Printable length: up to 298 feet (91 m)**
Note: Actual
maximum print length depends on print application, paper size,
printer driver settings, and operating system. |
5 |
Bottom margin: 0.12 to 1.77 inches (3 to 45
mm)* |
* For these paper types the default top and bottom margins are
0.8 inch (20 mm): Epson Premium Glossy Photo Paper
(250), Epson Premium Semigloss Photo Paper
(250), Epson Premium Luster Photo Paper (260),
and Epson Premium Semimatte Photo Paper (250). When
printing on Epson Singleweight Matte Paper in
CAD/Line Drawing mode, the default
top and bottom margins are 0.12 inches/0.59 inches (3 mm/15
mm).
** The maximum printable length using the Epson
driver on Windows is 298 feet (91 m). To print longer images, you
need to use third-party banner printing software and select
Roll Paper (Banner) as the
Source setting in the printer
driver.
Note: Actual
maximum print length depends on print application, paper size,
printer driver settings, and operating system. Even if the margins
change, the printed size does not change.
Note: Printing is
distorted when the trailing edge of the roll paper comes off the
core. Make sure the trailing edge does not come inside the printing
area.
Cut sheets
Note: When
printing borderless, the left and right margins are set to 0.
(Borderless printing is not available with poster board.)
1 |
Printable width: Varies by model (see
the link below) |
2 |
Left/right/bottom margin: 0.12 inches (3 mm) |
3 |
Top margin: 0.5 inches (12.7 mm) |
4 |
Printable length: 8.66 to 62.99 inches (220 to
1600 mm) |
Note: The smallest
size supported by the printer is 10 inches (254 mm) wide by 5
inches (127 mm) long. If you create a custom paper size that is
smaller than 10 × 5 inches (254 × 127 mm), the document will print
with wider-than-expected margins, which must be trimmed.
