You
can use the projector's Edge Blending feature to create a seamless
image from multiple projectors.
Note: Before
performing Edge Blending, set the Color
Mode setting to Multi-Projection to make more precise
adjustments.
- Press the Menu button.
-
Select the Extended menu and press
Enter. -
Select the Multi-Projection setting and press
Enter.
-
Select the Edge
Blending setting and press Enter.
- Turn on the Edge Blending, Line Guide, and Pattern Guide settings.
Note: If the projected guide is unclear, try changing the Guide Color setting.
-
Select the edge you want to blend on each
projector and press Enter. For the projector on
the left, select the Right Edge

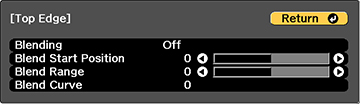

and for the projector on the right, select Left Edge. You see a screen
like this:
- Select the Blending setting and select On.
- Press Esc to return to the previous screen.
- Select the Blend Start Position setting and adjust the point where edge blending begins.
- Select the Blend Range setting and use the arrow buttons to select the width of the blended area so that the displayed guides are at the edges of the overlapping area between the two images.
- Press Esc to go back to the previous screen.
- Select the Blend Curve setting and select a gradient for the shaded area on the projectors.
- When the edges are blended, turn off the Line Guide and Pattern Guide settings on each projector to check the final settings.
- When you are finished, press the Menu button.
