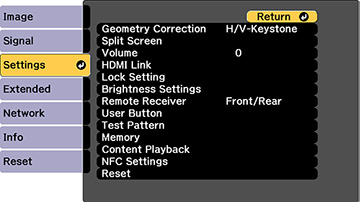

| Geometry Correction
|
H/V-Keystone
Quick Corner
Curved Surface
Corner Wall
Point Correction
Memory
|
Adjusts the projected image shape
H/V Keystone: lets
you manually correct the angles of the horizontal and vertical
sides
Quick Corner: select
to adjust the position of the four corners
Curved Surface:
select to adjust the image when projecting on a curved surface
Corner Wall: select
to adjust the image when projecting on a surface with a right
angle
Point Correction:
select to display a grid and finely adjust the image position
Memory: select to
save adjustment value of the geometric correction and load it when
needed |
| Split Screen
|
— |
Divides the viewing area horizontally and displays two images
side-by-side; while in Split Screen mode, press Menu to display the Split Screen options or
Esc to cancel split screen
display |
| Volume
|
Varying levels available |
Adjusts the volume of an external speaker connected to the
projector |
| HDMI Link
|
Device Connections
HDMI Link
Audio Out Device
Power On Link
Power Off Link
Link Buffer
|
Adjusts the HDMI Link options that allow the projector remote to
control HDMI-connected devices
Device Connections:
lists the devices connected to the HDMI port
HDMI Link: enables
or disables the HDMI Link function
Audio Out Device:
selects which device or port outputs audio. Select Projector to output audio from a device
connected to the Audio Out port.
Select AV System to output audio
from externally connected speakers or an AV system through CEC.
Power On Link:
controls what happens when you turn on the projector or a linked
device. Select PJ -> Device or
Bidirectional to turn on the
linked device when the projector is turned on. Select Device -> PJ or Bidirectional to turn on the projector when
the linked device is turned on
Power Off Link:
controls whether linked devices are turned off when the projector
is turned off
Link Buffer:
improves weak HDMI Link connections |
| Lock Setting
|
Control Panel Lock
Lens Lock
|
Controls projector button locking to secure the projector
Control Panel
Lock:
- Full
Lock: locks all buttons
- Partial
Lock: locks all buttons except the On and Standby buttons
- Off:
no buttons locked
Lens Lock: locks the
focus, zoom, and lens shift settings |
| Brightness Settings
|
Light Source Mode
Brightness Level
Constant Brightness
Estimated Remains
Energy Saving Mode
|
Selects the brightness mode of the projector
Light Source Mode:
sets the brightness for the light source
- Normal:
maximum brightness
- Quiet:
70% brightness with reduced fan noise
- Extended:
70% brightness and extends the life expectancy of the light
source
- Custom:
select a custom brightness level and enable use of the next three
settings
Brightness Level:
select the Custom brightness
level you want
Constant Brightness:
maintains a constant brightness (if this setting is enabled, you
cannot change the Light Source
Mode and Brightness Level
settings)
Estimated Remains:
displays how long the projector can maintain constant brightness
(if that setting is selected)
Energy Saving Mode:
reduces power consumption by automatically adjusting the brightness
of the light source over a period of one hour; disable this setting
if you are using the Constant
Brightness or Multi-Projection features |
| Remote Receiver
|
Front/Rear
Front
Rear
Off
|
Limits reception of remote control signals by the selected
receiver; Off turns off all
receivers |
| User Button
|
User Button 1
User Button 2
User Button 3
|
Assigns a menu option to the User1, User2, and User3 buttons on the remote control for
one-touch access |
| Test Pattern
|
— |
Displays a test pattern to assist in adjusting the image; press the
left or right arrow buttons on the remote control or  Enter on the control panel to cycle through
the available test patterns, or Esc to cancel pattern display |
| Memory
|
Memory
Lens Position
Geometry Correction
|
Save
customized sets of settings to memory
Memory: loads,
saves, erases, renames, or resets specific menu settings
Lens Position: saves
the position of the adjusted lens
Geometry Correction:
saves the geometry correction adjustments |
| Content Playback
|
Content Playback
Overlay Effect
USB Viewer
|
Plays back a playlist created in the Epson Projector Content
Manager software or Epson Web Control
Content Playback:
turns Content Playback on or
off
Overlay Effect: adds
color and effects to the projected image when Content Playback is set to On (not available when Edge Blending is set to On)
USB Viewer: selects
a specific playlist from a USB device connected to the projector
when Content Playback is set to
On |
| NFC Settings
|
NFC Write Protection
NFC Write Password
|
Prevents scanning to the projector's settings
NFC Write
Protection: prevents scanning the projector's settings
NFC Write Password:
sets a password for scanning the projector's settings |
| Reset
|
— |
Resets all the Settings menu
settings to their defaults |
