Basic Control
Note: If the
Remote Password is set to On, you
need to enter your user name and password. (The
default username is EPSONREMOTE
and the default password is the projector's serial number. Enter
the serial number with uppercase letters.).
| 1 |
Returns to the Home
screen |
| 2 |
Turns on the projector |
| 3 |
Input source selection
controls |
| 4 |
A/V Mute button control
|
| 5 |
Searches for sources |
| 6 |
Turns off the projector |

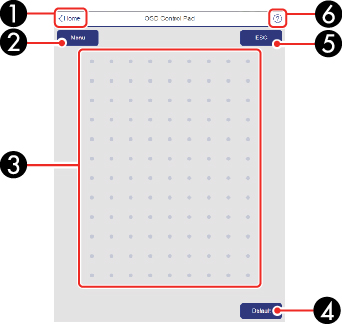

OSD Control Pad
| 1 |
Returns to the Epson
Web Control screen |
| 2 |
Displays the projector's setting
menus |
| 3 |
Use your finger or mouse to
navigate the menus |
| 4 |
Returns projector to default
settings |
| 5 |
Returns to the previous menu |
| 6 |
Displays help topics |
Note: You
cannot change some settings using Epson Web Control.
Lens Control
Focus/Distortion
screen
| 1 |
Returns to the Home
screen |
| 2 |
Focus adjustment slider |
| 3 |
Focus adjustment buttons |
| 4 |
Distortion adjustment slider |
| 5 |
Distortion adjustment buttons |
| 6 |
Displays the Focus/Distortion
screen |
| 7 |
Displays the Zoom screen |
| 8 |
Displays the Lens Shift
screen |
| 9 |
Displays the Test Pattern
screen |
| 10 |
Displays the Memory screen |
Zoom screen
Note:
Depending on the installed lens, the Zoom feature
may not be available.
| 1 |
Zoom adjustment
slider |
| 2 |
Zoom adjustment buttons |

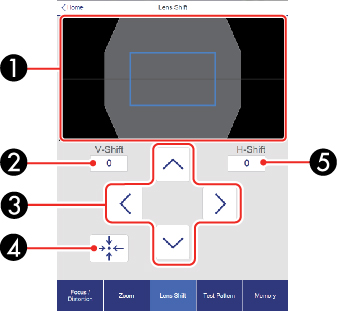

Lens Shift screen
| 1 |
The blue square
displays the current image position and the red square displays the
new image position |
| 2 |
Displays the vertical image
position; select to change the value |
| 3 |
Moves the image position up, down,
left, or right |
| 4 |
Moves the lens to the home
position |
| 5 |
Displays the horizontal image
position; select to change the value |
Test Pattern screen
| 1 |
Displays available
test patterns; select to project a test pattern |
| 2 |
Turns off test pattern
display |
Memory screen
| 1 |
Overwrites your
current settings with saved settings |
| 2 |
Saves your current settings to
memory |
| 3 |
Displays a list of saved
memories |
| 4 |
Erases a saved memory |
| 5 |
Renames a saved memory |

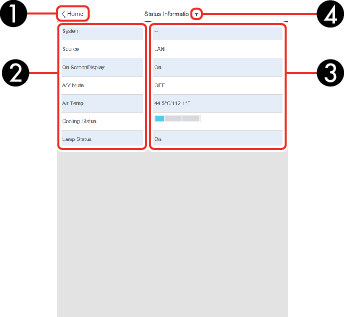

Status Information screen
| 1 |
Returns to the Home
screen |
| 2 |
Displays a list of monitored
settings |
| 3 |
Displays the setting status |
| 4 |
Select to view different status
information |

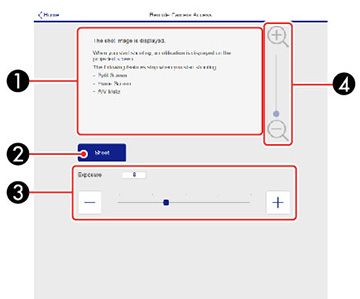

Remote Camera Access screen
| 1 |
Displays the image you
captured using the Shoot
button |
| 2 |
Takes a picture of the projected
image using the camera on the front of the projector |
| 3 |
Adjusts the image exposure |
| 4 |
Zooms in or out on the image you
captured |
Advanced
If the default Web Control
Password is set, a screen prompting you to change the
password appears before you can view the Advanced screen. It is strongly recommended
that you change the password regularly to prevent unauthorized
access to your projector.
Note: Not all
settings can be changed through Web Control. The following settings
can only be set using Web Control:
- Monitor Password (up to 16 alphanumeric
characters)
- IPv6 Settings (manual)
- HTTP port (used for Web Control; cannot use 80
[default], 843, 3620, 3621, 3625, 3629, 4352, 4649, 5357, 10000,
10001, or 41794)
| 1 |
Opens the menus |
| 2 |
Displays the selected menu
name |
| 3 |
Contains the selected projector
settings |
| 4 |
Locks or unlocks the projector
settings |
| 5 |
Updates the projector
settings |
