You can set up or install your projector in the
following ways:
Front
Rear
Front ceiling
Rear ceiling
Caution:

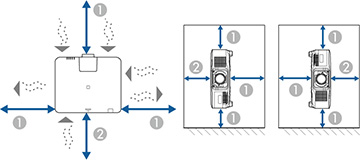

Be sure to leave the following amount of
space around the projector to avoid blocking the air exhaust and
intake vents.
1 |
11.8 inches (30
cm) |
2 |
7.9 inches (20 cm) |

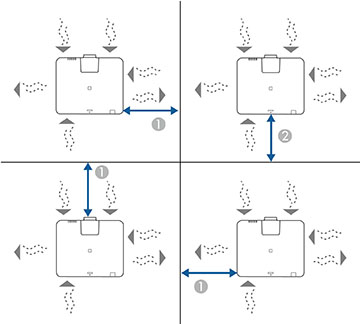

If you are installing multiple projectors next to
each other, be sure to leave at least 28 inches (70 cm) of space
between the projectors. Also, make sure heated air from an exhaust
vent does not go into the air intake vent of another projector.

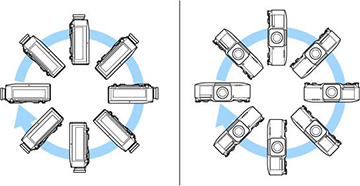

You can mount the projector to the ceiling at any
horizontal or vertical angle.
If you project from the ceiling or from the rear,
select the correct Projection
setting and, if necessary, adjust the OSD Rotation setting.
You can switch the Projection setting between Front and Front/Ceiling or Rear and Rear/Ceiling by holding the A/V Mute button on
the remote control for approximately 5 seconds.
