Attaching and Removing the Cable Cover

You can attach the cable cover that came with your projector to hide the attached cables from view while the projector is suspended from the ceiling.

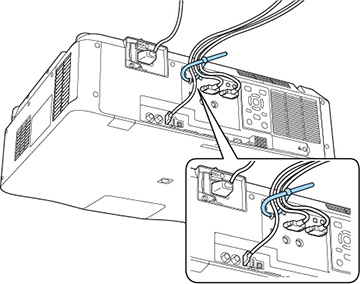

  1. Bundle the cables together using a band or other fastener (not provided).


    Caution:
    Do not bundle the power cord to the other cables. Otherwise, a fire may occur.

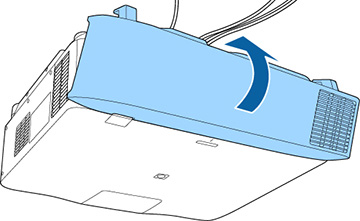

  2. Place the cable cover on the projector as shown, guiding the cables through the notch on the base of the cable cover.

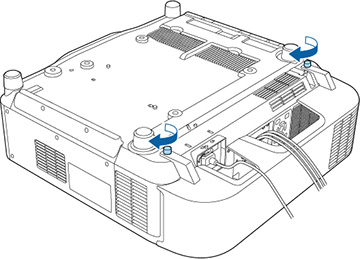

  3. Tighten both cable cover screws.


To remove the cover, loosen both screws and pull the cover off of the projector.

Parent topic: Setting Up the Projector
