You
can remove a lens to replace it with a different lens. The
projector uses a laser as the light source. As a safety measure,
the light source turns off when the lens is removed. Attach the
lens, and then press the On
button to turn it back on.
Warning: Wait
at least 30 minutes to remove or replace the lens after turning off
the projector. Touching the lens unit before it cools down may
cause burns.
- Press and hold the Lens Shift (remote control) or Lens (control panel) button for approximately 3 seconds to move the lens to the center position.
- Turn off the projector and unplug the power cord.

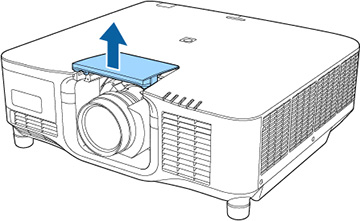

- Pull the lens replacement cover off of the projector.

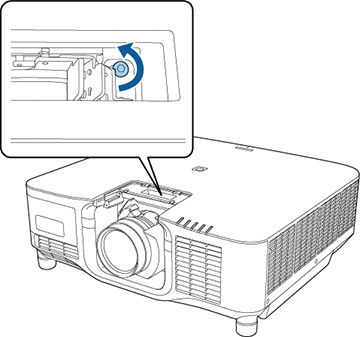

- If necessary, loosen the screw next to the lock lever.

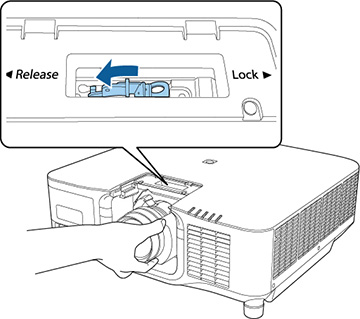

- Hold the lens firmly as you pinch the lock lever and move it to the Release position.

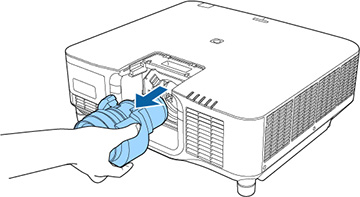

- Gently pull the lens straight out of the projector.
