Projector Feature Settings

Options on the Settings menu let you customize various projector features.

Setting	Options	Description
Keystone	H/V-Keystone Quick Corner	Adjusts image shape to rectangular (horizontally and vertically) H/V-Keystone: lets you manually correct horizontal and vertical sides; turn on or off Auto V-Keystone and the H-Keystone Adjuster setting (Auto V-Keystone only functions when the Projection setting is set to Front) Quick Corner: select to correct image shape and alignment using an on-screen display
Sound	Volume Sound Mode	Adjusts the projector's sound output Volume: adjusts the volume of the projector’s speaker system or external device connected to the Audio Out port Sound Mode: selects a sound mode depending on the projected content
HDMI Link	Device Connections HDMI Link Audio Out Device Power On Link Power Off Link	Adjusts the HDMI Link options that allow the projector remote to control HDMI-connected devices that support the CEC standard Device Connections: lists the devices connected to the HDMI 1 and HDMI 2 ports HDMI Link: enables or disables the HDMI Link function Audio Out Device: selects whether to output audio from the internal speakers or a connected audio/video system Power On Link: controls the projector or a linked device Device -> PJ or Bidirectional: turns on the projector when the linked device is turned on PJ -> Device or Bidirectional: turns on the linked device when the projector is turned on Power Off Link: controls whether linked devices are turned off when the projector is turned off
Child Lock	On Off	Locks the power button
Memory	Load Memory Save Memory Erase Memory Rename Memory	Controls memory functions for current projector settings Load Memory: lets you load a saved memory Save memory: lets you save current projector settings to memory Erase Memory: lets you delete a saved memory Rename Memory: lets you rename a saved memory
Reset Settings	—	Resets all adjustment values on the Settings menu to their default settings, except for the following: Audio Out Device Power On Link Power Off Link Memory

Note: Turning off your input devices will not power down the projector even if you select On as the Power Off Link setting.

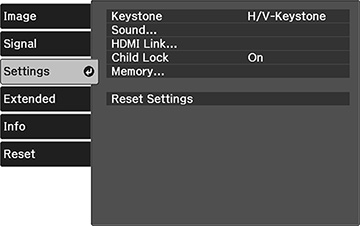

Projector Feature Settings - Settings Menu
