Attaching and Removing the Side Cover

You can remove and attach the side cover to hide the attached cables from view.

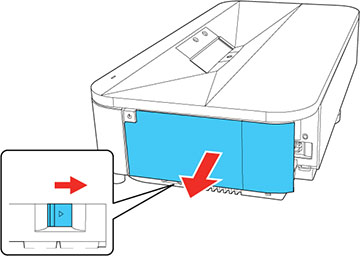

  1. Remove the projector's side cover, if necessary.

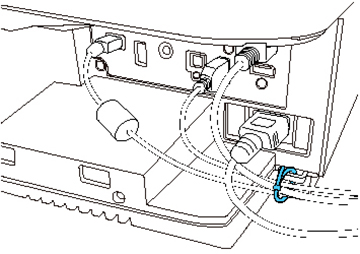

  2. Bundle the cables together using a band or other fastener (not provided) and pass it through the cable holder as shown.


    Caution:
    Do not bundle the power cord to the other cables. Otherwise, a fire may occur.
  3. Carefully replace the side cover.

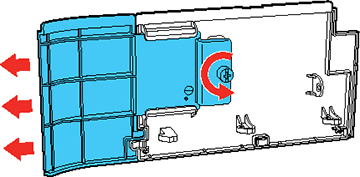

    Note: The projector's side cover can be split into two parts. Remove side cover B to allow more space for connected streaming devices and cables.


Parent topic: Setting Up the Projector
