You can set up or install your projector in the following ways:

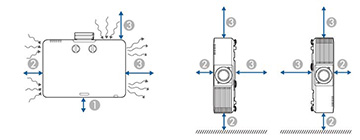

Note: Be sure
to leave the following amount of space around the projector to
avoid blocking the air exhaust and intake vents.
| 1 | 3.94 inches (10 cm) |
| 2 | 7.87 inches (20 cm) |
| 3 | 15.75 inches (40 cm) |
Note: When
setting up multiple projectors, be sure to leave the following
amount of space between the projectors.
Without a partition
| 1 | 59.05 inches (150 cm) |
With a partition
| * | Partition |
| 1 | 7.87 inches (20 cm) |
| 2 | 15.75 inches (40 cm) |
If you project from the ceiling or from the rear, be sure to select the correct Projection setting in the Extended menu. If necessary, enable the Inv Direction Button setting in the Extended > Operation > Advanced menu and adjust the OSD Rotation setting in the Extended > Display menu.
